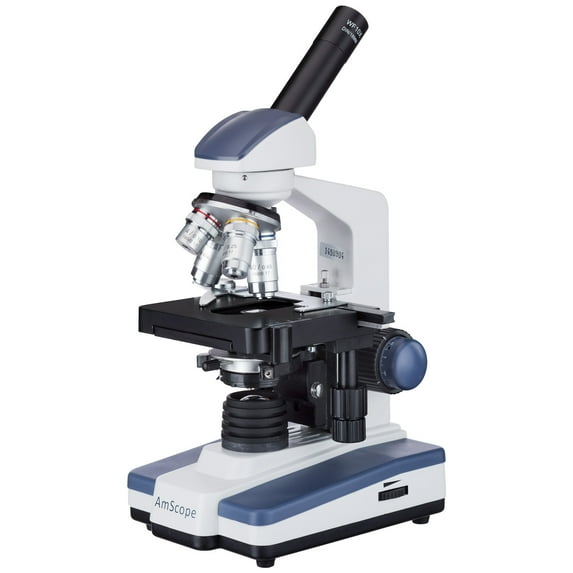

AmScope 40X-1600X LED Monocular Compound Microscope with Double-layer Mechanical Stage New

(No ratings yet)

Key item features

Eight widefield magnification settings: 40X, 64X, 100X, 160X, 400X, 640X, 1000X & 1600X
Professional 30 degree inclined 360 degree swiveling monocular head
Sturdy framework with 3-D double layer mechanical stage and coaxial coarse & fine focusing
- Eight widefield magnification settings: 40X, 64X, 100X, 160X, 400X, 640X, 1000X & 1600X
- Professional 30 degree inclined 360 degree swiveling monocular head
- Sturdy framework with 3-D double layer mechanical stage and coaxial coarse & fine focusing

Specs

Standard optical microscope type
Compound
Microscope head type
Monocular
Maximum magnification
1600x
Minimum magnification
40X
Rec. use
Educational
Features
LED Lights

Current price is $244.99

Price when purchased online

Free shipping
Free 90-day returns

How do you want your item?

I want delivery savings with

Try 30 days for just $1! Choose a plan at checkout.

How do you want your item?

Ships to

Arrives by Thu, May 28

Order within 2 hr 59 min

Sold by PatternPro Seller

Fulfilled by Walmart

4.678422596079642 stars out of 5, based on 12996 seller reviews(4.7)

Report an issue with this seller

Free 90-day returns

More seller options (1)

Starting from $244.99

Try 30 days of Walmart+ for just $1!

T&C apply.

About this item

Product details

Our new monocular compound microscope is designed for teaching demonstrations, clinical examinations and laboratory applications. It is a perfect microscope for a range of people from students in high school to teachers including those with a major in biology, or enrolled in medical school. It comes with a professional monocular head, double layer mechanical stage, course & fine focusing, and LED illumination. There are eight magnification settings: 40X, 64X, 100X, 160X, 400X, 640X, 1000X & 1600X. This microscope is an ideal instrument for bacterial, biological, and pharmaceutical researches. Your product will arrive in a factory sealed box with a retail value above $800.

Microscope Features :

30 degree inclined 360 degree swiveling monocular head
High quality precise optical glass elements
Eight magnification settings, 40X, 64X, 100X, 160X, 400X, 640X, 1000X & 1600X
Four Achromatic objectives, DIN 4X, 10X, 40X(S), 100X(S,Oil)
Two pairs of widefield eyepieces: WF10X and WF16X
Variable intensity illumination
Coaxial coarse and fine focus adjustment
Focusing knobs are on both sides of the microscope
Stage upward moving lock protects objectives and slides
Stain-resistant double layer mechanical stage
NA1.25 Abbe Condenser with iris diaphragm & filters
Rack and pinion adjustment condenser
Specifications :
Eyepieces: widefield, WF10X and WF16X
Objectives: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)
Head: 30 degree inclined 360 degree swiveling monocular
Adjustable ocular diopter
Nosepiece: revolving quadruple
Mechanical Stage: 3-D double layer
Size: 4-5/8" x 5" (118mm x 127mm)
- Travel Range (X-Y): 2-13/16" x 1-3/16" (70mm x 30mm)
Condenser: NA1.25 Abbe condenser with iris diaphragm
Illumination: LED light, transmitted, intensity adjustable, GS and CE approved
Focusing: coaxial coarse & fine knobs on both sides
Power Supply: 100-240VAC, 50/60Hz, AC/DC adapter (UL approved) Included
Dimension: 11" x 7" x 13-3/4" (280mm x 178mm x 350mm0
Packing List :
One Monocular Microscope Head
One Microscope Body Frame with Double Layer Mechanical Stage and LED Illumination
Four DIN Standard Objectives, 4X, 10X, 40X and 100X
One Pair of Widefield 10X Eyepieces
One Pair of Widefield 16X Eyepieces
One Blue Color Filter
One Dust Cover
Sample Immersion Oil
User's Microscope Manual
Net weight: 11 lbs
Shipping weight: 13 lbs

Eight widefield magnification settings: 40X, 64X, 100X, 160X, 400X, 640X, 1000X & 1600X
Professional 30 degree inclined 360 degree swiveling monocular head
Sturdy framework with 3-D double layer mechanical stage and coaxial coarse & fine focusing
- Eight widefield magnification settings: 40X, 64X, 100X, 160X, 400X, 640X, 1000X & 1600X
- Professional 30 degree inclined 360 degree swiveling monocular head
- Sturdy framework with 3-D double layer mechanical stage and coaxial coarse & fine focusing

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Standard optical microscope type

Compound

Microscope head type

Monocular

Maximum magnification

1600x

Minimum magnification

40X

Warranty

Warranty information

Our microscopes and accessories are manufactured under the strict guidelines established by ISO 9001: 2000 Standards. Five Year Warranty for Microscopes: All our microscopes come with a five (5) year factory warranty against manufacturing defects, covering labor and parts. One Year Warranty for Accessories: All our microscope accessories (USB cameras, illuminators, illumination, dust covers, and etc.) come with a one (1) year warranty, except when specified in the description. Warranty Services: We, AmScope, provide all the warranty repairs, replacements, and other services. Please feel free to contact us via email to info@amscope.com or at our Contact Us whenever you need any assistance with an item, parts, or to submit repair requests. Note: Buyers are responsible for round-way shipping and handling cost for warranty services. Our warranty covers parts and labor only.

Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
