iMeshbean 500W AC 10.8-30V to AC 110V Wind Grid Tie Inverter Turbine Power Dump Load

(No ratings yet)
Car
Check if this fits your vehicle

Protect your purchase

Get peace of mind for pennies a day!

Add Walmart Protection Plan

Key item features


Electrical Specifications:
  • Model: Wind-500G-WAL
  • Normal AC Output Power: 450W
  • Maximum AC Output Power: 500W
  • AC Output Voltage Range: 90V ~ 130V
  • AC Output Frequency Range: 46Hz ~ 65Hz
  • Total Harmonic Distortion(THD): <5%
  • Power Factor: 0.99
  • AC Input Voltage Range: 10.8V ~ 30V （AC, not DC）
  • Peak Inverter Efficiency: 0.92
  • Standby Power consumption: <0.5W
  • Output Current Waveform: Pure Sine-wave
  • MPPT Function: Yes
  • Over Current Protection: Yes
  • Over Temperature Protection: Yes
  • Reverse Polarity Protection: Yes
  • Island Protection: Yes
  • Stackable: Yes

    • Preface
  • The grid-tie inverter can transfer wind energy from wind generators directly into the home grid using no extra equipment. It can be connected to any outlet (conventional network) in the home. The grid-tie inverter controls the phase and the frequency and voltage of the power generated by the wind generator. It produces a pure sine-wave and matches that of the grid.
  • This model grid-tie has build in bridge rectifier and dump load controller, it can maintain the rotating speed of the wind turbine and keep the voltage from the wind turbine always at the range of the rated range of the grid tie inverter. It also has a high voltage protection function, when the wind is too big, and the dump load controlling system can’t keep the output voltage from the wind turbine, the controller will disconnect itself from the wind turbine, so it is very safe to be used.

    • INSTALLATION:
  • The individual system of SGPV is that.
  • 1. Installing the solar panel of the SGPV at a suitable location that sunshine can irradiate on it.
  • 2. Connecting the cables of the solar panel to the DC input terminals of the small grid tie inverter of the SGPV, inserting the plug of the inverter into the socket of the home grid.
  • 3. After this, when the sun shines, the SGPV will convert the solar energy to the home grid.

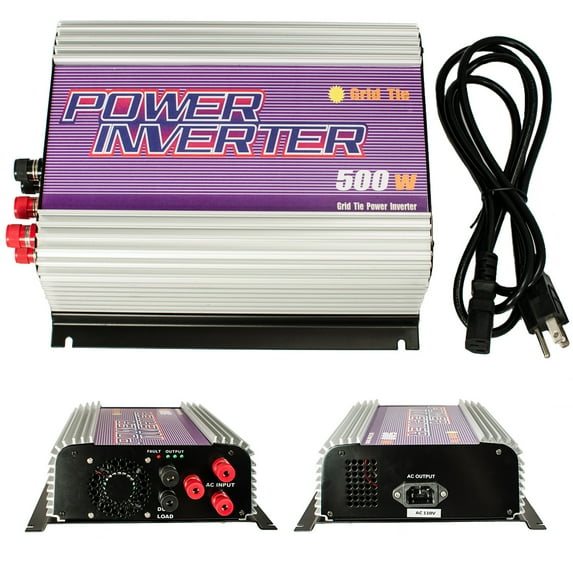

  • There are 5 terminals on the left side of the inverter, 3 red terminals will be connected to the three phase output from the wind turbine, and 2 black terminals will be connected to dump load resistors.
  • If there is no AC grid detected, the red LED will be on, the inverter will not put out power, this is called “Island Protection” .

    • Package includes:
  • 1 X Grid Tie Inverter
  • 1 X Power Cord
  • 1 X User Manual
