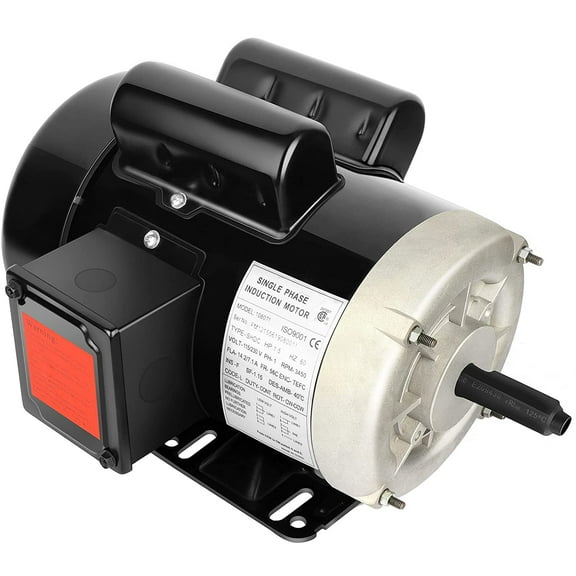

Hero image 0 of 2HP Electric Motor 3450 RPM General Purpose Single Phase Motor 56C Frame 115V/230V 5/8"Shaft Diameter Rolled Steel Shell TEFC 60HZ, 0 of 7

Olenyer

2HP Electric Motor 3450 RPM General Purpose Single Phase Motor 56C Frame 115V/230V 5/8"Shaft Diameter Rolled Steel Shell TEFC 60HZ

(No ratings yet)

Key item features

General Purpose Single Phase Motor: HP - 2, POLE - 2,FRAME - 56C, ENC - TEFC,IP - 55 Detailed Parameters: HZ: 60HZ, Voltage: 115V/230V, AMP: 18.2A/9.1A , RPM: 3450
INS - F, Rotation -CW/CCW, Shaft diameter - 5/8",Shaft length - 1.88" Housing Material: Rolled steel shell. Adopt S1 continuous working system. Safe and durable, long service life
Widely Application: General equipment motor is suitable for general equipment. It is recommended to buy high-horsepower motor for old equipment. Please buy motor according to your own equipment

Specs

Horsepower
2 HP
Electric motor type
AC Motor
Electrical phase
Single Phase
Volts
230 V
Maximum motor speed
3450 rpm
Amps
18.2 Amps

Current price is $222.99

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Ships to

Arrives between May 29 - Jun 5

Sold and shipped by Olenyer

4.03125 stars out of 5, based on 64 seller reviews(4.0)

Report an issue with this seller

Free 30-day returns

About this item

Product details

Specification
HORSE POWER:2 HP
PHASE: Single phase
POLE:2
FRAME:56C
Frequency: 60 Hz
Rated speed: 3450 RPM
Shaft diameter:5/8inch
Shaft length: 1.88 inch
Gross weight: 40.79 lbs
Package size: 14.96 x 10.63 x 10.63 inches
Rotation: CW/CCW (Counter clockwise rotation when viewed from the shaft end. THIS MOTOR IS REVERSIBLE.)

Package Including
1 x General Purpose Single Phase Motor

General Purpose Single Phase Motor: HP - 2, POLE - 2,FRAME - 56C, ENC - TEFC,IP - 55 Detailed Parameters: HZ: 60HZ, Voltage: 115V/230V, AMP: 18.2A/9.1A , RPM: 3450
INS - F, Rotation -CW/CCW, Shaft diameter - 5/8",Shaft length - 1.88" Housing Material: Rolled steel shell. Adopt S1 continuous working system. Safe and durable, long service life
Widely Application: General equipment motor is suitable for general equipment. It is recommended to buy high-horsepower motor for old equipment. Please buy motor according to your own equipment
