Miumaeov Solar PV Combiner Box 2 Strings DC 500V/1000V Circuit Breaker fits Solar Panel
Miumaeov Solar PV Combiner Box 2 Strings DC 500V/1000V Circuit Breaker fits Solar Panel
Hero image 0 of Miumaeov Solar PV Combiner Box 2 Strings DC 500V/1000V Circuit Breaker fits Solar Panel, 0 of 12
Miumaeov

Miumaeov Solar PV Combiner Box 2 Strings DC 500V/1000V Circuit Breaker fits Solar Panel

(No ratings yet)
Miumaeov Solar PV Combiner Box 2 Strings DC 500V/1000V Circuit Breaker fits Solar PanelMiumaeov Solar PV Combiner Box 2 Strings DC 500V 1000V Circuit Breaker fits Solar PanelMiumaeov Solar PV Combiner Box 2 Strings DC 500V 1000V Circuit Breaker fits Solar Panel

Key item features

Specification

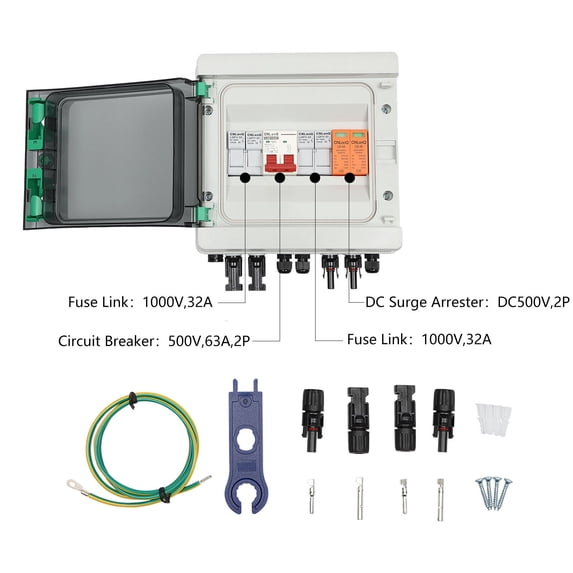

  • Solar DC String Box Model: LQX-C2/2
  • DC Circuit Breaker Model: LQL7/LQB1
  • DC Surge Arrester Model: LD-40
  • DC Fuse Holder Model: LQPV
  • Color: Black
  • Material: PC, ABS
  • Input: 2 String
  • Output: 1String/2 String
  • Maximum Voltage: 500V
  • Max DC Short Circuit Current Per Input (Isc): 15A (Changeable)
  • Maximum Current Output: 32A
  • Protection Degree: IP65
  • Impact Resistance Degree: IK10
  • Cable Input Entry: PG 2.5-6mm², MC4 2.5-6mm²
  • Output Cable Gland: PG 2.5-6mm², MC4 2.5-6mm²
  • Rated Insulation Voltage (Ui): 1000V
  • Rated Current (Le): 32A
  • Max Operation Voltage (Ucpv): 500V
  • Maximum Discharge Current: 40KA
  • DC Fuse Holder: DC 1000V
  • Rated WorKing Voltage: 500V
  • Fuse Link: 1000V, 15A
  • Circuit Breaker: 500V, 32A, 2P
  • DC Surge Arrester: DC 500V, 2P
  • Net Weight: 3kg/6.6lbs
  • Gross Weight: 3.2kg/7lbs
  • Package Size: 30.5*30.5*17cm/12*12*6inch
  • Solar DC String Box Size: 30*30*14cm/11*11*5.5inch
  • Fuse Link Core Size: 10*38mm/0.3*1.4inch
