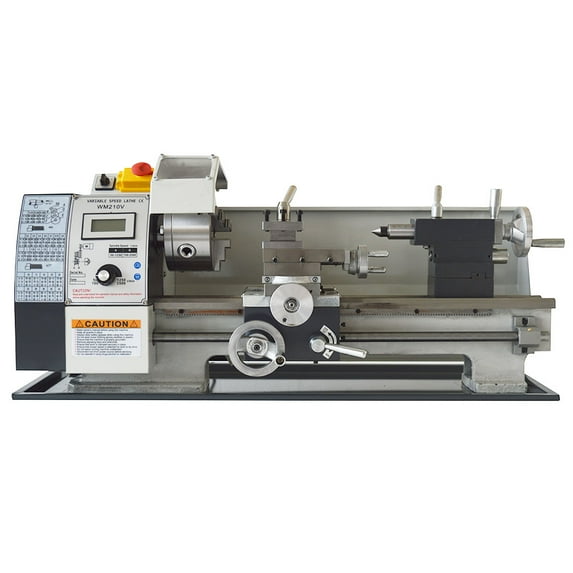

EQCOTWEA Precision Metal Bench Lathe Inch Thread 110V 900W Brushless Motor

(No ratings yet)

Key item features

【Powerful function】-The lathe can be applied to metal processing and woodworking, such as turning, drilling, boring, threading, etc. It can also be used for precision parts processing, sample processing and model processing.
【Reliable performance】-All metal gears, metal casings, handwheels. Super hard gear, suitable for machining carbon steel and stainless steel. High-frequency quenching process and precision grinding of high-quality cast iron bed. The spindle is supported by precision tapered roller bearings.
【Imperial Thread Lathe】- This lathe is imperial scale, this lathe provides optional parts such as chuck, stabilizer and imperial gear with 6 months warranty and lifetime service.
【Multiple Choices】-WM180V Mini Metal Lathe 7"*12" is suitable for hobbyists and teaching, the spindle drilling is about 0.8" (21mm), and the center distance is about 12" (300mm).
[Brushless Motor] - All kinds of lathes are equipped with 110V brushless motor (7"*12":600W), which has strong power and more convenient maintenance.

Specs

Lathe type
Metal Lathes
Swing over bed
8.3 in
Distance between center
15.7 in
Spindle speed
50-2500 rpm
Chuck size
4.92 in
Spindle taper
MT5

Current price is $1,359.00

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Ships to

Arrives between May 16 - May 19

Sold and shipped by Prospersumai Co.Ltd

4.703703703703703 stars out of 5, based on 27 seller reviews(4.7)

Report an issue with this seller

Free 30-day returns

About this item

Product details

INTRODUCTION:
Miniature lathe is mainly used for processing the end face of various rotary surfaces and rotating bodies. For example, turning inside and outside cylindrical surface, ring groove and forming turning surface and all kinds of commonly used metric thread.

PARAMETERS:
Model: WM210V
Motor: 110V brushless motor
Voltage: AC110V 50/60Hz
Power: 900W
Number of Spindle Speeds: Infinitely variable speeds
Spindle taper: MT5
Knife rest labour: Horizontal four-station
Spindle rotation speed: 50-2500rpm
Range of metric threads: 0.5-3mm
Range of Inch Threads(optional accessory ): 10-44T.P.I
Precision of the spindle: 0.01mm
Automatic feed range: 0.1mm-0.2mm
Maximum stroke of tool rest plate: 2.16"（55mm）
Maximum stroke of middle plate: 2.95"（75mm）
Maximum stroke of bottom plate: 10.87"（276mm）
Maximum stroke of tailstock sleeve: 2.36"（60mm）
Tail frame taper: MT2
Length of center: 15.7"（400mm）
Swing Over Bed: 8.3"（210mm）
Rotary diameter of tool rest: 5.51"（140mm）
Spindle bore: 1.50"（38mm）
Diameter of chuck: 4.92"（125mm）
Width of lathe bed: 3.94"（100mm）
Lathe sizes: 31.9"*11.8"*13.8"（81*30*35cm）

ITEMS INCLUDED: 028033
EQCOTWEA Precision Metal Bench Lathe Inch Thread 110V 900W Brushless Motor

【Powerful function】-The lathe can be applied to metal processing and woodworking, such as turning, drilling, boring, threading, etc. It can also be used for precision parts processing, sample processing and model processing.
【Reliable performance】-All metal gears, metal casings, handwheels. Super hard gear, suitable for machining carbon steel and stainless steel. High-frequency quenching process and precision grinding of high-quality cast iron bed. The spindle is supported by precision tapered roller bearings.
【Imperial Thread Lathe】- This lathe is imperial scale, this lathe provides optional parts such as chuck, stabilizer and imperial gear with 6 months warranty and lifetime service.
【Multiple Choices】-WM180V Mini Metal Lathe 7"*12" is suitable for hobbyists and teaching, the spindle drilling is about 0.8" (21mm), and the center distance is about 12" (300mm).
[Brushless Motor] - All kinds of lathes are equipped with 110V brushless motor (7"*12":600W), which has strong power and more convenient maintenance.

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Lathe type

Metal Lathes

Swing over bed

8.3 in

Distance between center

15.7 in

Spindle speed

50-2500 rpm

Warranty

Warranty information

We provide 30 days return and one year technical support after it is delivered.
