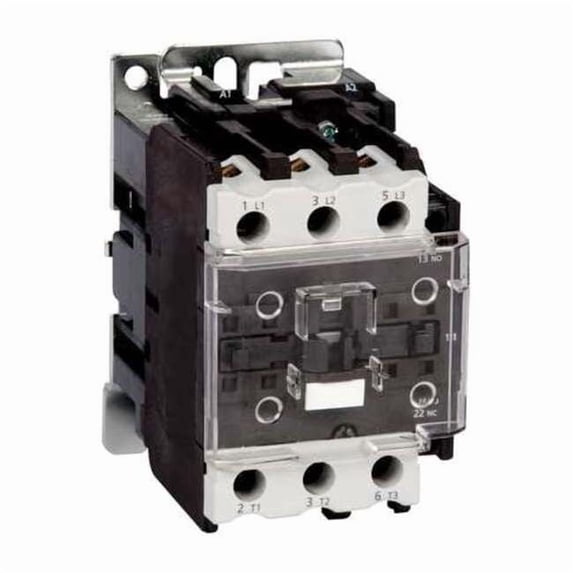

Dayton IEC Magnetic Contactor, 1NC/1NO, 120V AC, 3 P, Non-Reversing, Screw 6EAR1

The DAYTON - IEC Magnetic Contactor is a non-reversing, screw terminal connection type device that operates with a coil voltage of 120V AC. This contactor is designed to handle both inductive and resistive loads, with full load amps for inductive at 50 A and resistive at 70 A. It features an auxiliary contact configuration of 1NO/1NC, meaning it has one normally open and one normally closed contact. The product does not include an enclosure as per its NEMA rating. Key Features: - Non-Reversing Action: This feature indicates the directionality of the current flow through the contactor. - Coil Voltage: Operates on a standard 120V AC power supply. - Full Load Amps: Rated for operation with inductive loads of up to 50A and resistive loads of up to 70A. - Auxiliary Contact Configuration (1NO/1NC): Provides additional circuit flexibility by having one normally open and one normally closed contact. - Horsepower Ratings: Compatible within the specified ranges, including single phase (3 hp at 120V AC &7.5 hp at 240V AC) and three-phase (15 hp at both 208V &240V AC;40 hp at both480v&600vAC). - Standards Compliance: Complies with CSA and UL Listed standards as per industry regulations. WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Nickel (Metallic)
