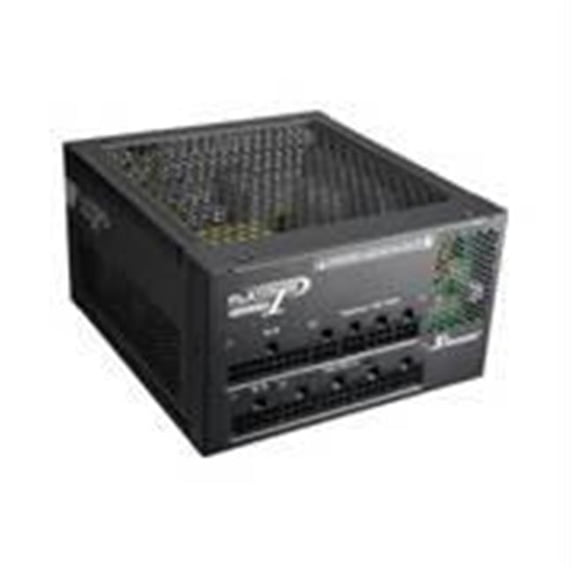

Seasonic SS-520FL2 Active PFC F3 520W 80 PLUS Platinum ATX12V-EPS12V Fanless Power Supply

Specifications

• Mfr Part Number: SS-520FL
• Features:
  • 80PLUS Platinum Certified Super High Efficiency
  • Full Modular Cabling Design
  • Fanless - 0dBA
  • Patented DC Connector Module with Integrated VRM (Voltage Regulator Module)
  • DC to DC Converter Design
  • Conductive Polymer Aluminum Solid Capacitors
  • Highly Reliable 105 C Japanese Aluminum Electrolytic Capacitors
  • Tight Voltage Regulation ( 2%)
  • Active Power Factor Correction (99% PF Typical)
  • Gold Plated High Current Terminals
  • Dual Sided PCB Layout
  • Ultra Ventilation (Honeycomb Structure)
  • Multi-GPU Technology Support
  • All-in-One DC Cabling Design
  • Easy Swap Connector
  • Universal AC Input (Full Range)
• Total Power: 520W
• AC Input Range: 100 ~ 240 V / 7.0~4.0 A, 50/60 Hz
• Efficiency: 80 PLUS Platinum/ Energy Star/ ErP Lot 6 2013 Compliant
• Protection: OPP/ OVP/ UVP/ OCP/ OTP/ SCP
• Hazardous Materials: WEEE, RoHS
• Safety: C-UL, TUV, CB, PCT, C-tick, CCC, CE, FCC
• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 43A, -12V @ 0.5A, +5Vsb @ 2.5A
• Connectors: 1x 24/20-pin M/B Connector, 1x 8/4-pin CPU Connector, 2x 8/6-pin PCI-Express Connectors, 5x 4-pin Peripheral Connectors, 6x SATA Connectors, 1x Floppy Connector (Y-adapter)
• Dimensions (WxLxH): 150.0 x 160.0 x 86.0 mm
