Hero image 0 of Spectra Precision Digital Electronic Theodolite, 0 of 7

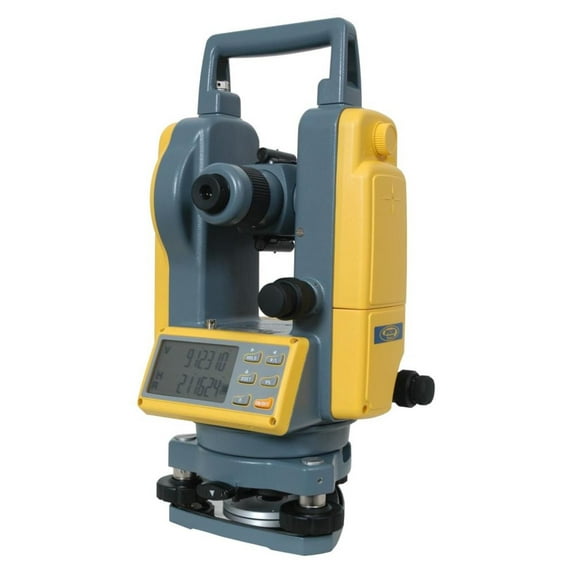

Spectra Precision Digital Electronic Theodolite
(No ratings yet)
Key item features
- Precise Angle Measurement: Theodolite delivers 2" angular accuracy with a minimum reading of 1" or 5", supporting units in degrees, mils, gons, and vertical percentage.
- Advanced Optical System: Features a 30x magnification erect image telescope with a 45 mm aperture and a 4.43 ft focus distance, complemented by a 3x optical plummet.
- Robust Environmental Protection: Boasts an IP54 rating, ensuring dust and water resistance for reliable operation in demanding jobsite conditions.
- Extended Power Options: Includes both a NiMH rechargeable battery pack and a 4 AA alkaline battery pack for prolonged use and flexibility.
- Intuitive User Interface: Equipped with dual backlit LCD displays for clear readings and a streamlined six-button keypad for quick and easy operation.
- Automatic Tilt Compensation: Incorporates a 3-range automatic compensation tilt sensor for enhanced accuracy and adaptability to varying jobsite needs.
Generated by AI
Specs
- BrandSpectra
- Compatible modelsDET-2
- Lens diameter45 mm
- MaterialAluminum
- Viewfinder typeOptical
- Weight9.9 lbs
Current price is USD$1,432.00
Price when purchased online
Out of stock
How do you want your item?
Out of stock
Similar items you might like
Based on what customers bought
DGK Color Tools 5x7" DKK Color Calibration Chart Set, 2-Pack $23.67
$2367current price $23.67DGK Color Tools 5x7" DKK Color Calibration Chart Set, 2-Pack
US 50-100 Pack Clear Film Canisters with Caps for 35mm Storage Small Accessories $15.99
2 optionsAvailable in additional 2 options$1599current price $15.99US 50-100 Pack Clear Film Canisters with Caps for 35mm Storage Small Accessories
Soimiss 2Pcs Black Rubber Eye Cover Guards for Binoculars Anti Glare Design $4.14
$414current price $4.14Soimiss 2Pcs Black Rubber Eye Cover Guards for Binoculars Anti Glare Design
Binocular Tripod Mount Telescopic Adapter Affordable Premium Material $17.72
$1772current price $17.72Binocular Tripod Mount Telescopic Adapter Affordable Premium Material
SENTRY SCOPECOAT HOLOGRAPHIC/ELECTRONIC SCOPE COVER 5.4"X2" EOTECH 552/512/555/518/558 SLIP ON NEOPRENE/NYLON LAMINATE BLACK $31.98
$3198current price $31.98SENTRY SCOPECOAT HOLOGRAPHIC/ELECTRONIC SCOPE COVER 5.4"X2" EOTECH 552/512/555/518/558 SLIP ON NEOPRENE/NYLON LAMINATE BLACK
null4.3 out of 5 Stars. null reviewsTelescope Finder Base Dovetail Groove 1/4 Thread Modification Base Astronomical Telescope Mount Accessories Black $8.80
$880current price $8.80Telescope Finder Base Dovetail Groove 1/4 Thread Modification Base Astronomical Telescope Mount Accessories Black
About this item
Product details
The Spectra Precision DET-2 is a rugged, cost-effective theodolite designed to give accurate angle measurements in general construction applications. The affordable, versatile, easy to use instrument and accessories will increase your productivity when turning angles and setting elevations and lines. The DET-2 has a large liquid crystal display on both sides of the instrument with big, easy to read characters. A built-in reticle illuminator and LCD back-lighting can be turned on if needed in low light conditions with a single press of a button. A six button keypad provides easy access to most common functions. An optical plummet allows quick setup over a control point. Simple intuitive operation will have your crew in the field being productive without any special training.
- Specifications
- Telescope
- Image: Erect
- Magnification: 30x
- Aperture: 45 mm
- Focus Distance: 4.43 ft
- Field of View: 1˚ 30’
- Stadia Ratio/Constant: 100/0
- Optical Plummet
- Magnification: 3x
- Angle of View: 5˚
- Focusing Range: 5 ft
- Reticle Type: Crosshair
- Angle Measuring System
- Minimum Reading: 1" or 5"
- Precision: 2"
- Units: Deg/mil/gon/V %
- Display: Dual
- Tilt Sensor
- Automatic Compensation: ±3’ Range
- Vials
- Tubular: 30”/2 mm
- Circular: 8'/2 mm
- Protection Rating: IP54 (dust and water resistant)
- Power Source: NiMH rechargeable battery pack and 4 × AA alkaline battery pack
- Operating Temperature: −4°F to +122°F (−20°C to +50°C)
- Weight: 9.9 lbs. (4.5 kg)
- Warranty: 2 Years Product Description The Spectra Precision® DET-2 Electronic Theodolite delivers 2" angular accuracy, making it an ideal choice for precise angle measurement in construction layout, alignment, and elevation tasks. It offers vertical axis compensation with an on/off tilt sensor, allowing operators to adapt accuracy settings to jobsite needs. Dual backlit LCD displays with large characters ensure readings are easy to view in any light, while the illuminated reticle supports extended work hours from dawn to dusk. Operators benefit from a streamlined six-button keypad for quick setups and fast, intuitive operation. Built to perform in demanding environments, the DET-2 features a rugged, IP54-rated housing and an optical plummet for fast, accurate setup over control points. Programmable settings include unit selection (degrees, mils, gons, vertical percent) and an audible 90° notification for right-angle turns. With NiMH rechargeable and alkaline battery packs included, it offers extended run time and flexibility on long projects. In The Box
- DET-2 Theodolite
- NiMH Rechargeable Battery Pack
- Backup Alkaline Battery Pack
- Charger
- Plumb bob
- Carry Case Brochures and Manuals
- Theodolite DET-2 Manual
