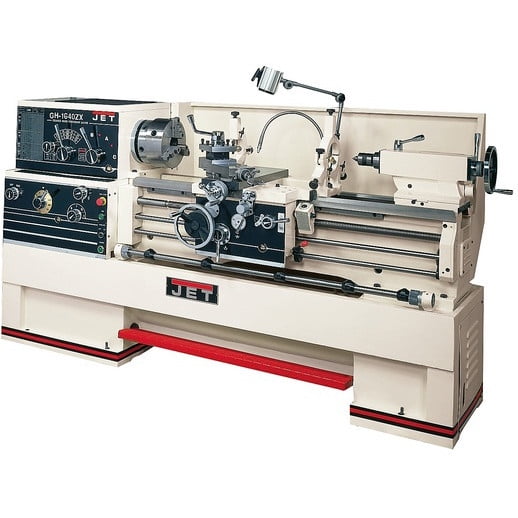

JET 321493 Lathe with 2-Axis ACU-RITE Digital Readout 200S Collet Closer and Taper Attachment Installed

ISO 9001 certified manufacturer. 3-1/8 in. bore spindle is supported by two tapered and one ball bearing. Chrome molybdenum headstock gears are hardened, ground and shaved. Universal gearbox allows inch, metric, diametral and module pitch threads, no gear change required. Carriage features one-shot lubrication and Turcite-B on bed sliding surfaces. T-slotted compound slide featuring a four-way tool post. One piece cast iron base absorbs vibration allowing heavier cuts. High quality ANSI Class 50 wear resistant cast iron bed ways are hardened and ground. Removable gap allows up to 23-5/8 in. diameter work on 16 in. and 27-1/2 in. on 18 in.. Five position automatic carriage stop increases productivity. Attractive chrome control levers, dials and knobs complete this impressive package.

Includes

• GH-1880ZX Lathe with 2-Axis ACU-RITE DRO 200S, Collet Closer and Taper Attachment Installed - 321493
• 10 in. 3-Jaw Chuck with Top Reversing Jaws
• 12 in. 4-Jaw Chuck
• 16 in. Face Plate
• 4-Way Tool Post
• Follow Rest
• Large Capacity Steady Rest
• Fully Integrated Coolant System
• Full Length Splash Guard and Coolant System
• Large, Easy-To-Use Foot Brake
• Articulating Halogen Work Lamp
• Centrally Located Controls with Jog Button
• Threading Dial
• Mounting Pads and Levelers
• Spindle Sleeve (MT-7 and MT-5)
• Dead Center and Live Center
• Tool Box and Adjusting Tools

Specifications

• AC Voltage: 230/460V
• Bed Width: 10-1/2 in.
• Carriage Travel: 37-1/2 in.
• Cross Slide Travel: 6-3/8 in.
• Distance Between Centers: 40 in.
• Drive Type: Geared Head
• Follow Rest Capacity: 2-3/4 in.
• Horsepower: 3
• Length of Gap: 9-3/8 in.
• Max. Compound Slide Travel: 3-1/2 in.
• Max. Tailstock Spindle Travel: 4-3/4 in.
• Motor Phase: 3
• No. of Cross Feed Rates: 40
• No. of Inch Threads: 40
• No. of Longitudinal Feed Rates: 40
• No. of Metric Threads: 22
• PreWired Voltage: 230V
• Range of Cross Feeds (IPR): 0.0003 in. - 0.0103 in.
• Range of Inch Threads (TPI): 4 - 112
• Range of Longitudinal Feeds (IPR): 0.0012 in. - 0.0294 in.
• Range of Metric Threads: 0.45mm - 7.5mm
• Spindle Bore: 1-1/2 in.
• Spindle Mount: D1-4
• Spindle Mount Taper: MT-5
• Spindle Speed Range (RPM): 40 - 1,800
• Spindle Speed Settings: 12
• Steady Rest Capacity: 3-3/4 in.
• Swing Over Bed: 14 in.
• Swing Over Cross Slide: 8-1/2 in.
• Swing Through Gap: 20 in.
• Tailstock Spindle Taper: MT-3
• Tool Size: 5/8 in. x 5/8 in.
