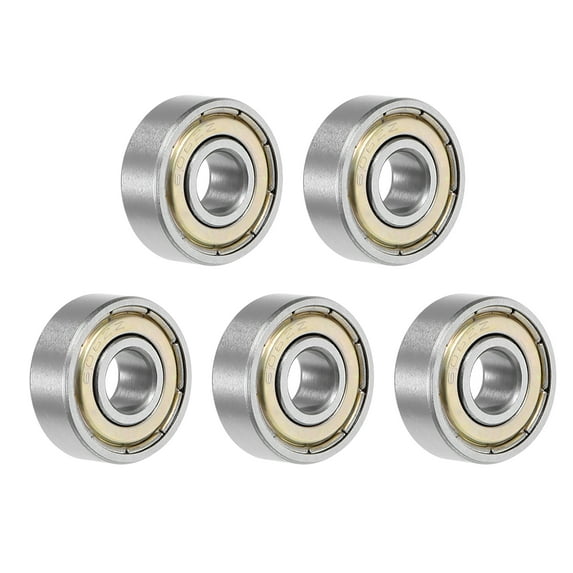

606ZZ Ball Bearing 6mmx17mmx6mm Double Shielded Chrome Bearings 5pcs

NOTE：

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

Description:

• Single-row, pre-lubricated, normal accuracy.
• Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
• With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
• Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance, and high contact fatigue performance.
• Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.

Selection Guide:

Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.

Sealed (Designation SuffixRS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.

Specification:

Model: 606ZZ

Shield Type: Double Shielded

Inner Race/Outer Race Meterial: Chrome Steel (GCr15)

Cage Material: Stamping Steel

Inner Diameter (d): 6mm

Outer Diameter (D): 17mm

Thickness (B): 6mm

Dynamic Load Rating (Cr): 1.95kN

Static Load Rating (Cor): 0.74kN

Accuracy Class: P0 (ABEC-1)

Noise Level: Z1

Number of Pack: 5 Pcs
