Amscope 3MP USB 2.0 Color CMOS Digital Eyepiece Microscope Camera

A Webcam for Your Microscope

AmScope's MD series digital eyepiece cameras are lightweight and compact, making them perfect companions to any microscope. Another huge benefit is their ability to be used with popular video conferencing apps just like a webcam. This is because they use UVC protocol, making them plug-and-play compatible on most platforms, including Windows, Mac OS, and Linux. Whether remote-streaming a QC line or partcicpating in an online class, the MD series digital eyepiece can connect you to the world.

The MD300A is an ultra-compact 3.1MP USB digital microscope camera, ideally suited for use as an eyepiece camera. By itself, it will fit 23mm ocular or photo ports, but it can be adapted to fit 30mm or 30.5mm ports using the included sleeves. Using the USB interface for both connectivity and power, only a single cable is needed.

With software available for Windows, Mac, and Linux, this camera package is a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. Independent preview and capture resolutions allow you to view high-speed video while simultaneously capturing high-definition images. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.

Specifications

Sensor

• Sensor Type: CMOS
• Optical Format: 1/2.5"
• Pixels: 3.1M
• Pixel Size: 2.8µm x 2.8µm
• Active Recording Area: 5.73mm x 4.30mm
• Shutter: Electronic Rolling shutter

Camera

• Frame Rate(s): 30fps @ 2048x1536 and 30fps @ 1024x768
• Connectivity: USB 2.0
• Mounting Size: 23mm
• Compensating Lens: —
• Power: 5V over USB
• Dimensions: 27.2mm Ø x 40mm
• Operating Temperature: -10-50°C
• Operating Humidity: 30-80%

Software

• OS Requirements: Windows: (32/64 bit) XP/Vista/7/8/10/11, Mac OS 10.8+, Linux kernel 3.13+
• Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB 2.0

Features

Windows Version

• Live video preview
• Captures still images and video
• Time-lapse capture
• Exposure and white-balance controls
• Dark-field correction
• Digital binning
• Image processing
• Measurement tools, including lines, arcs, polygons
• Segmentation and counting tools
• Image-stitching, extended depth-of-field, HDR
• Fluorescence color-mapping

Mac/Linux Versions

• Live video preview
• Captures still images and video
• Exposure control
• Color adjustment
• Measurement tools, including lines, arcs, polygons

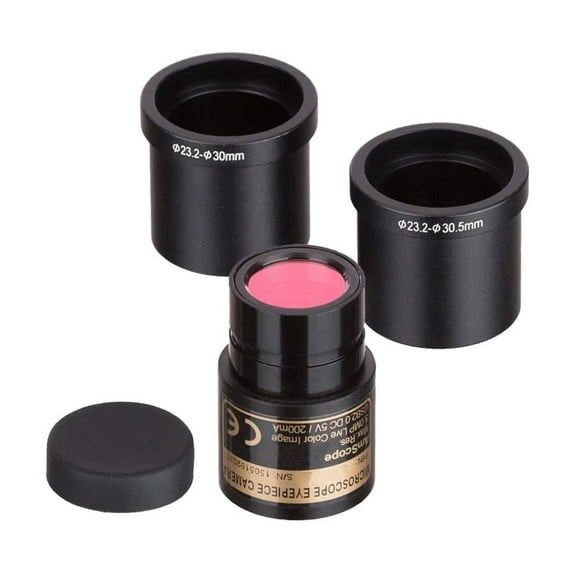

Contents:

• One Digital Camera
• One USB Cable
• One 23mm to 30mm Sizing Adapter
• One 23mm to 30.5mm Sizing Adapter
