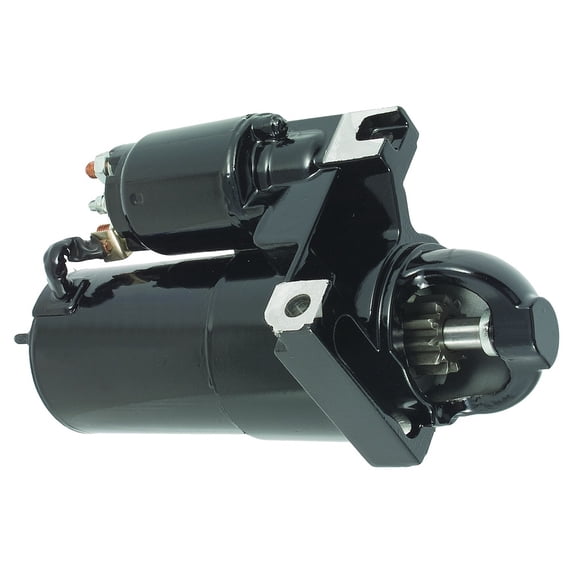

Hero image 0 of NEW Starter Compatible With Hyster Lift Trucks 323-1619 10465606 9000895 3858463 3862308, 0 of 3
NEW Starter Compatible With Hyster Lift Trucks 323-1619 10465606 9000895 3858463 3862308
(No ratings yet)
Key item features
- FULL 2 YEAR WARRANTY - INDUSTRY LEADER
- 100% BRAND NEW REPLACEMENT ENGINEERED & TESTED TO EXCEED OEM SPECIFICATIONS
- PLEASE CHECK YOUR NUMBERS TO ENSURE CORRECT REPLACEMENT
- CONTACT US ANYTIME - WE'RE HERE TO HELP!
Specs
- Manufacturer part number6788BN-MCR-1
- BrandMotor City Reman
- Weight10 lb
Current price is USD$149.89
Price when purchased online
- Free shipping
Free 30-day returns
Walmart Protection Plan by Allstate
(Only one option can be selected at a time)
How do you want your item?
Ships to
Arrives by Fri, May 29
|
Sold and shipped by Buy MCR
4.368421052631579 stars out of 5, based on 19 seller reviews(4.4)19 seller reviews
Free 30-day returns
About this item
Product details
This unit is SAE J1171 Marine Ignition Protection Certified
****WARNING NOTES****
When upgrading/converting from the SAE hole size old Direct Drive/Beer Can starter (3/8) to the metric hole size PMGR starter (10mm), the bolts must be changed out to the conversion bolts that have metric shanks and SAE threads, and are made to make the final alignment and lock. Replacing the longer hole DD starter with the shorter hole PMGR starter will cause additional free space. DO NOT stack washers on the bolts to fill up this space as it prevents the features of the bolt from functioning properly. The starter mesh will not be correct and the starter may shift slightly on the mount. This is not only for marine applications, but all Delco pad mount starters. While some of the marine applications have OEM special bolt heads (12 point and smaller than normal hex bolt heads) making them easier to manuever tools into the tight spaces, the 9/16 hex is a normal OEM design bolt head (or metric similar 15mm). If this unit is not installed properly, the warranty may be voided and returns denied
BOLT PATTERN WARNING PLEASE MATCH UP YOUR BOLT PATTERN BEFORE ORDERING, THIS UNIT HAS 1 LONG BOLT AND 1 SHORT BOLT AND THE PATTERN IS IN A STRAIGHT LINE. IF YOUR BOLT PATTERN IS 2 LONG BOLTS AND THE PATTERN IS IN A DIAGONAL LINE USE PART NUMBER 6792BN
Description: Starter
Critical Notes: Steel Planetary Track For Increased Durability In Extreme Duty Environments
OEM(s): Delco, Hyster, Volvo Penta
Family: Delco PG260L
Voltage: 12
Power: 1.6kW / 2.14HP
Rotation: CW
Starter Type: PMGR
Number of Teeth: 11
Gear OD: 1.161in / 29.5mm
Length: 3.937in / 100mm
Mtg Ear 1 Hole: 10mm Unthreaded
Mtg Ear 2 Hole: 10mm Unthreaded
Notes:
Straight Mounting Flange
Internal Thru Bolts
75mm Field Case OD
Replaces:
ARCO 30460
Delco 9000763, 9000820, 9000822, 10465606, 8000193, 9000895
Hyster 1469603, 1650426
Outboard Marine Corp (OMC) 381781, 384198, 981074, 981078, 982107, 982121, 982200, 983248, 983444, 983790, 985966, 988217, 3850526, 3854750, 3855882, 3858463
Marine Power 0172-000
Mercury 50-32703, 50-45120, 50-46282, 50-59799, 50-69863A1, 50-69864A1, 50-77328A1, 50-77328A3, 50-79821A2, 50-79822A1, 50-79822A2, 50-79823A1, 50-806963A2, 50-806963A4, 50-806965A2, 50-806965A4, 50-812429A2, 50-99417A2, 50-8M0090697, 8M0090697
Pleasure Craft RA122016
Volvo 3862308, 3854750-1, 3856003-3, 855326-5
SIERRA 18-5900, 18-5911, 18-5919
Used on:
Buick ROADMASTER 5.7L(350) V 1995, 1996
CTS 5.7L(346) V 2004, 2005
FLEETWOOD 5.7L(350) V 1996
Chevrolet CAMARO 5.7L(350) V 1995, 1996, 1997
Chevrolet CAPRICE 5.7L(350) V 1996
Chevrolet IMPALA 5.7L(350) V 1996
Hyster H-40XL 3000cc, 3L 1998, 1999, 2000, 2001, 2002
Hyster H-50XL 3000cc, 3L 1998, 1999, 2000, 2001, 2002
Hyster H-60XL 3000cc, 3L 1998, 1999, 2000, 2001, 2002
Hyster S-40XL 3000cc, 3L 1998, 1999, 2000, 2001, 2002
Hyster S-45XM 3000cc, 3L 1998, 1999, 2000, 2001, 2002
Hyster S-50XM 3000cc, 3L 1998, 1999, 2000, 2001, 2002
Hyster S-55XM 3000cc, 3L 1998, 1999, 2000, 2001, 2002
Hyster S-60XM 3000cc, 3L 1998, 1999, 2000, 2001, 2002
Hyster S-65XM 3000cc, 3L 1998, 1999, 2000, 2001, 2002
Mercruiser Model 3.0 3000cc, 3L/181CI 4-Cyl GM 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998
Mercruiser Model 3.0LX 3000cc, 3L/181CI 4-Cyl GM 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998
OMC 2.5L 4cyl 153ci 2.5L G 1982, 1983, 1984, 1985, 1986
OMC 3.0L 4cyl 181ci 3.0L G 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998
OMC 3.8L 6cyl 231ci 3.8L G 1981, 1982, 1983, 1984, 1985
OMC 4.3L 6cyl 262ci 4.3L G 1985, 1986
OMC 5.0L 8cyl 305ci 5.0L G 1982, 1983, 1984, 1985, 1986
OMC 5.7L 8cyl 350ci 5.7L G 1982, 1983, 1984, 1985, 1986
OMC 8.2L 8cyl 502ci 8.2L G 1984, 1985
OMC KW 5000cc, 5L/305CI 8-Cyl GM 1986
OMC KW 5700cc, 5.7L/350CI 8-Cyl GM 1986
Pontiac FIREBIRD 5.7L(350) V 1995, 1996, 1997
Volvo Penta 3.0GL 3000cc, 3L/181CI 4-Cyl , Gas 1993, 1994, 1995, 1996, 1997, 1998, 1999
Volvo Penta 3.0GS 3000cc, 3L/181CI 4-Cyl , Gas 1993, 1994, 1995, 1996, 1997, 1998, 1999
Volvo Penta AQ175A 6-Cyl , Ga 1981, 1982, 1983, 1984, 1985
Volvo Penta AQ200A 8-Cyl , Ga 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Volvo Penta AQ200B 8-Cyl , Ga 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Volvo Penta AQ200C 8-Cyl , Ga 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Volvo Penta AQ200D 8-Cyl , Ga 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Volvo Penta AQ200F 8-Cyl , Ga 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Volvo Penta AQ205A 6cyl Ga 1988, 1989
Volvo Penta AQ211A 8cyl Ga 1986, 1987, 1988, 1989
Volvo Penta AQ225A 8-Cyl , Ga 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Volvo Penta AQ225B 8-Cyl , Ga 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Volvo Penta AQ225C 8-Cyl , Ga 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Volvo Penta AQ225D 8-Cyl , Ga 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Volvo Penta AQ225F 8-Cyl , Ga 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Volvo Penta AQ231A 8-Cyl , Ga 1986, 1987, 1988, 1989
Volvo Penta AQ231B 8-Cyl , Ga 1986, 1987, 1988, 1989
Volvo Penta AQ260A B 8cyl Ga 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985
Volvo Penta AQ271A 8-Cyl , Ga 1986, 1987, 1988, 1989
Volvo Penta AQ271B 8-Cyl , Ga 1986, 1987, 1988, 1989
Volvo Penta AQ290A 8-Cyl , Ga 1979, 1980, 1981, 1982, 1983, 1984, 1985
Volvo Penta AQ311A 8-Cyl , Ga 1986, 1987, 1988, 1989
Volvo Penta AQ311B 8-Cyl , Ga 1986, 1987, 1988, 1989
Volvo Penta BB231A 8-Cyl , Ga 1987
Volvo Penta BB260A 8-Cyl , Ga 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987
Volvo Penta BB260B 8-Cyl , Ga 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987
Volvo Penta BB261A 8-Cyl , Ga 1988, 1989
MCR Part Number: 6788BN
****WARNING NOTES****
When upgrading/converting from the SAE hole size old Direct Drive/Beer Can starter (3/8) to the metric hole size PMGR starter (10mm), the bolts must be changed out to the conversion bolts that have metric shanks and SAE threads, and are made to make the final alignment and lock. Replacing the longer hole DD starter with the shorter hole PMGR starter will cause additional free space. DO NOT stack washers on the bolts to fill up this space as it prevents the features of the bolt from functioning properly. The starter mesh will not be correct and the starter may shift slightly on the mount. This is not only for marine applications, but all Delco pad mount starters. While some of the marine applications have OEM special bolt heads (12 point and smaller than normal hex bolt heads) making them easier to manuever tools into the tight spaces, the 9/16 hex is a normal OEM design bolt head (or metric similar 15mm). If this unit is not installed properly, the warranty may be voided and returns denied
BOLT PATTERN WARNING PLEASE MATCH UP YOUR BOLT PATTERN BEFORE ORDERING, THIS UNIT HAS 1 LONG BOLT AND 1 SHORT BOLT AND THE PATTERN IS IN A STRAIGHT LINE. IF YOUR BOLT PATTERN IS 2 LONG BOLTS AND THE PATTERN IS IN A DIAGONAL LINE USE PART NUMBER 6792BN
Description: Starter
Critical Notes: Steel Planetary Track For Increased Durability In Extreme Duty Environments
OEM(s): Delco, Hyster, Volvo Penta
Family: Delco PG260L
Voltage: 12
Power: 1.6kW / 2.14HP
Rotation: CW
Starter Type: PMGR
Number of Teeth: 11
Gear OD: 1.161in / 29.5mm
Length: 3.937in / 100mm
Mtg Ear 1 Hole: 10mm Unthreaded
Mtg Ear 2 Hole: 10mm Unthreaded
Notes:
Straight Mounting Flange
Internal Thru Bolts
75mm Field Case OD
Replaces:
ARCO 30460
Delco 9000763, 9000820, 9000822, 10465606, 8000193, 9000895
Hyster 1469603, 1650426
Outboard Marine Corp (OMC) 381781, 384198, 981074, 981078, 982107, 982121, 982200, 983248, 983444, 983790, 985966, 988217, 3850526, 3854750, 3855882, 3858463
Marine Power 0172-000
Mercury 50-32703, 50-45120, 50-46282, 50-59799, 50-69863A1, 50-69864A1, 50-77328A1, 50-77328A3, 50-79821A2, 50-79822A1, 50-79822A2, 50-79823A1, 50-806963A2, 50-806963A4, 50-806965A2, 50-806965A4, 50-812429A2, 50-99417A2, 50-8M0090697, 8M0090697
Pleasure Craft RA122016
Volvo 3862308, 3854750-1, 3856003-3, 855326-5
SIERRA 18-5900, 18-5911, 18-5919
Used on:
Buick ROADMASTER 5.7L(350) V 1995, 1996
CTS 5.7L(346) V 2004, 2005
FLEETWOOD 5.7L(350) V 1996
Chevrolet CAMARO 5.7L(350) V 1995, 1996, 1997
Chevrolet CAPRICE 5.7L(350) V 1996
Chevrolet IMPALA 5.7L(350) V 1996
Hyster H-40XL 3000cc, 3L 1998, 1999, 2000, 2001, 2002
Hyster H-50XL 3000cc, 3L 1998, 1999, 2000, 2001, 2002
Hyster H-60XL 3000cc, 3L 1998, 1999, 2000, 2001, 2002
Hyster S-40XL 3000cc, 3L 1998, 1999, 2000, 2001, 2002
Hyster S-45XM 3000cc, 3L 1998, 1999, 2000, 2001, 2002
Hyster S-50XM 3000cc, 3L 1998, 1999, 2000, 2001, 2002
Hyster S-55XM 3000cc, 3L 1998, 1999, 2000, 2001, 2002
Hyster S-60XM 3000cc, 3L 1998, 1999, 2000, 2001, 2002
Hyster S-65XM 3000cc, 3L 1998, 1999, 2000, 2001, 2002
Mercruiser Model 3.0 3000cc, 3L/181CI 4-Cyl GM 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998
Mercruiser Model 3.0LX 3000cc, 3L/181CI 4-Cyl GM 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998
OMC 2.5L 4cyl 153ci 2.5L G 1982, 1983, 1984, 1985, 1986
OMC 3.0L 4cyl 181ci 3.0L G 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998
OMC 3.8L 6cyl 231ci 3.8L G 1981, 1982, 1983, 1984, 1985
OMC 4.3L 6cyl 262ci 4.3L G 1985, 1986
OMC 5.0L 8cyl 305ci 5.0L G 1982, 1983, 1984, 1985, 1986
OMC 5.7L 8cyl 350ci 5.7L G 1982, 1983, 1984, 1985, 1986
OMC 8.2L 8cyl 502ci 8.2L G 1984, 1985
OMC KW 5000cc, 5L/305CI 8-Cyl GM 1986
OMC KW 5700cc, 5.7L/350CI 8-Cyl GM 1986
Pontiac FIREBIRD 5.7L(350) V 1995, 1996, 1997
Volvo Penta 3.0GL 3000cc, 3L/181CI 4-Cyl , Gas 1993, 1994, 1995, 1996, 1997, 1998, 1999
Volvo Penta 3.0GS 3000cc, 3L/181CI 4-Cyl , Gas 1993, 1994, 1995, 1996, 1997, 1998, 1999
Volvo Penta AQ175A 6-Cyl , Ga 1981, 1982, 1983, 1984, 1985
Volvo Penta AQ200A 8-Cyl , Ga 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Volvo Penta AQ200B 8-Cyl , Ga 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Volvo Penta AQ200C 8-Cyl , Ga 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Volvo Penta AQ200D 8-Cyl , Ga 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Volvo Penta AQ200F 8-Cyl , Ga 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Volvo Penta AQ205A 6cyl Ga 1988, 1989
Volvo Penta AQ211A 8cyl Ga 1986, 1987, 1988, 1989
Volvo Penta AQ225A 8-Cyl , Ga 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Volvo Penta AQ225B 8-Cyl , Ga 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Volvo Penta AQ225C 8-Cyl , Ga 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Volvo Penta AQ225D 8-Cyl , Ga 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Volvo Penta AQ225F 8-Cyl , Ga 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
Volvo Penta AQ231A 8-Cyl , Ga 1986, 1987, 1988, 1989
Volvo Penta AQ231B 8-Cyl , Ga 1986, 1987, 1988, 1989
Volvo Penta AQ260A B 8cyl Ga 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985
Volvo Penta AQ271A 8-Cyl , Ga 1986, 1987, 1988, 1989
Volvo Penta AQ271B 8-Cyl , Ga 1986, 1987, 1988, 1989
Volvo Penta AQ290A 8-Cyl , Ga 1979, 1980, 1981, 1982, 1983, 1984, 1985
Volvo Penta AQ311A 8-Cyl , Ga 1986, 1987, 1988, 1989
Volvo Penta AQ311B 8-Cyl , Ga 1986, 1987, 1988, 1989
Volvo Penta BB231A 8-Cyl , Ga 1987
Volvo Penta BB260A 8-Cyl , Ga 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987
Volvo Penta BB260B 8-Cyl , Ga 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987
Volvo Penta BB261A 8-Cyl , Ga 1988, 1989
MCR Part Number: 6788BN
- FULL 2 YEAR WARRANTY - INDUSTRY LEADER
- 100% BRAND NEW REPLACEMENT ENGINEERED & TESTED TO EXCEED OEM SPECIFICATIONS
- PLEASE CHECK YOUR NUMBERS TO ENSURE CORRECT REPLACEMENT
- CONTACT US ANYTIME - WE'RE HERE TO HELP!
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it. Â
Specifications
Manufacturer part number
6788BN-MCR-1
Brand
Motor City Reman
Features
OEM Numbers: DELCO 10465606, 8000193, 9000895, HYSTER 1469603, 1650426, OUTBOARD MARINE CORP (OMC) 3858463, VOLVO-PENTA 3862308
Weight
10 lb
Warranty
Warranty information
MotorCityReman-MCR products, when properly installed, are warranted against defects in materials and workmanship to the original purchaser for a period of TWO (2) YEARS. Warranty does not cover failure due to accident, abuse, neglect or as the result of normal wear and tear. Improper installation, careless handling, tampering or disassembly in any way; will void original factory warranty. Failures due to rust, submersions, deliberate abuse, broken gears, housings or components shall not be considered for warranty, nor products used in applications for which they were not intended. The sole responsibility of MotorCityReman if any; shall be the repair or replacement of defective products as stated above.
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
