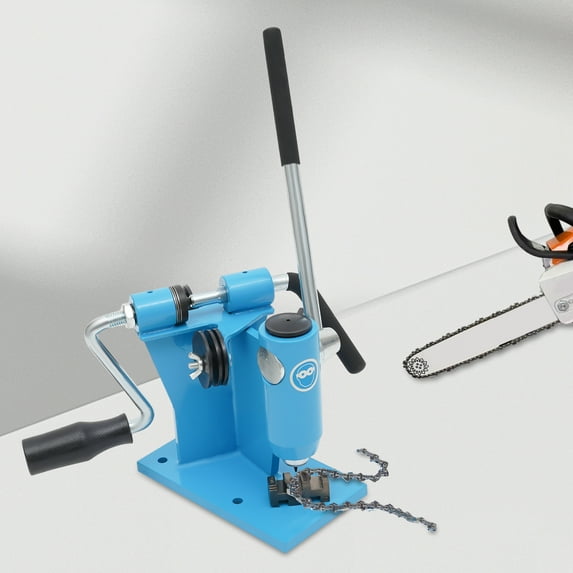

Chainsaw Saw Chain Rivet Spinner Chain Saw Link Breaker Repair Tool

Assembly Instructions

• Chain breaker comes supplied already assembled excluding handle portion (1).See exploded view of product.



*BENCH MOUNTING

• Step 1. Chain breaker is equipped with two holes for mounting. Lag screws or bolts (not supplied) may be used to hold the unit in position. (llust, A)


• Step 2. Mount chain breaker unit flush with side or front of bench area. (llust, A)



*RIGHT OR LEFT HAND USE

• Chain breaker comes ready for right-handed use. If lft-handed use is preferred, follow the instuctions below.


• Step 1. Unscrew set screw (3) and remove handle (1). (llust. B)


• Step 2. Remove plastic cap (5). With screwdriver, depress spring-loaded punch holder (6) to free up cam (2). (llust. C-D)


• Step 3. Slide cam (2) out right side of chain breaker unit. (Ilust. E)


• Step 4. Reinsert cam (2) into opposite side of chain breaker unit. Depress punch holder (6) and insert cam. (llust. F)


• Step 5. Replace plastic cap (5) and reinsert handle (1). Tighten set screw (3) with Allen wrench (4).


• Step 6. Remove stop pin (10) from right side of unit and reinsert into left side. (llust. G)



*REPLACING PUNCH

• Step 1. To remove worn or damaged punch (9), loosen set screw (7) with Allen wrench (4). (llust. H)


• Step 2. Insert new punch (9) into punch holder(6) (push punch up until fully seated). Tighten set screw (7). (lst.)



Instructions

• —HOW TO BREAK CHAIN


• Step 1. Insert chain portion to be broken into the slot of the adjustable anvil(llust. J)Tighten adjustment knob until chain is securely positioned. Position cutter as shown.( llust.K)


• IMPORTANT: It is not necessary to re-adjust anvil when breaking multiple loops of chain of the same chain type.


• Step 2. Position rivet head directly under punch and pull handle (1) down just far enough to push rivet out (do not use excessive force). (llust. L)


• NOTE: A. Important - when breaking chain at cutter, make sure cutter is in correct position. (llust. M)


• B. For cutters with depth gauges as shown in (llust.. N), make sure to position cutter properly as shown in (llust. 0) using the side of the adjustable anvil with the slot.



Operating Istuctins

• HOW TO SPIN RIVETS


• Step 1. Lay chain across plastic chain supports (8) (lust, C)


• Step 2. Rotate plastic chain supports (8) so that the rivet head is centered between the take-up handle pocket (6) and spinner anvil (5). (lust. C)


• Step 3. Turn take-up handle (6) until chain is secured against spiner anvil (5). (lust D)


• Step 4. Tum sinner crank (1)a few times t0 center the rivet hub in the spinner anvil (5). (lust. E)


• Step 5. Apply a few drops of oil to rvethub. (lust. F)


• Step 6. Tum spiner crank (1) and, at the same time, slowly turn take-up handle (6) inward (pproximately one fll rvolutin) until rivethead is formed. Take-up handle (6) provides pesse while sinner anvil (5) forms ivet head. (lust. G)



Maintenance

• Step 1. This unit is euipped with oling chambers and should be mintained peidially with a ightweight


• oil. (lust. H)


• For additional instructions on the product, please refer to the instructions.



The kit includes:

• 1* broken chain anchor chain machine (integrated)
