Hero image 0 of Blue Sea 2135 Circuit Breaker 25A Push Button - 2135, 0 of 2

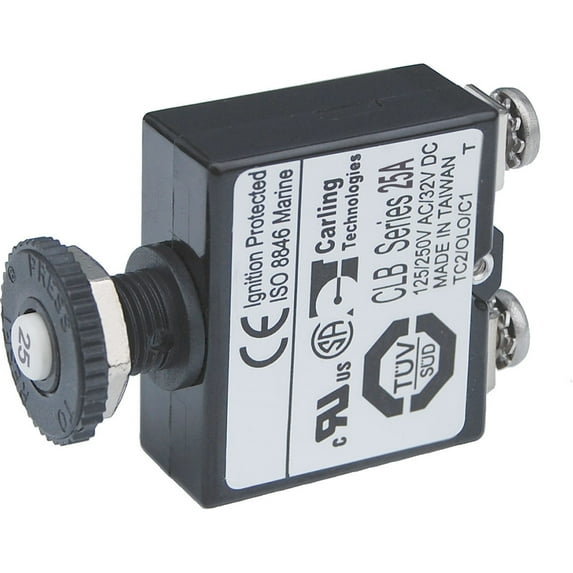

Blue Sea 2135 Circuit Breaker 25A Push Button - 2135

(No ratings yet)

Key item features

Push Button Reset Only Screw Terminal Circuit Breaker - 25 AmpsFeatures:
Branch circuit breakers (can also be used for 24-hour circuit protection)
Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
Compact design enables high density circuit protection configurations
Push-to-reset operation
"Trip Free" design cannot be held "ON" during fault current condition
Ignition protected - Safe for installation aboard gasoline powered boats
Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and crackingSpecifications:
Amperage: 25A
Maximum Voltage: 32V DC
Mounting: Panel Mount 3/8-27 UNS
Circuit Breaker Type: Thermal trip, manual push-button reset only
Terminal Type: #8 Screw
Interrupt Capacity: 3000A @ 14.7V / 2500A @ 28V
Minimum Operating Temperature: -10° C
Maximum Operating Temperature: 60° C
Screw Terminal Torque: 6 in-lb (0.68 Nm)
Weight: 0.09lb (0.04 kg)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
Amperage: 25a
Box Dimensions: 1"H x 3"W x 5"L WT: 0.1 lbs
UPC: 632085021351
New

Specs

Amps
25 Amps
Number of poles
1
Mount type
Screw-in
Volts
32 V
Brand
Blue Sea Systems
Has nrtl listing certification
N

Current price is $14.25

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Ships to

Arrives by Wed, May 20

Sold and shipped by Deff Audio

4.326315789473684 stars out of 5, based on 285 seller reviews(4.3)

Report an issue with this seller

Free 30-day returns

More seller options (4)

Starting from $14.94

About this item

Product details

Blue Sea Systems
2135
Circuit Breaker 25A, Push Button Reset

Provides economical circuit protection for 3 to 40 Amp loads when switching is provided separately. Compact design enables high density circuit protection configurations - waterproof with optional boot. Trip free - cannot be held closed after trip.
Interrupting Capacity: 3,000A @ 14.7V DC / 2,500A @ 28V DC
Voltage Max. Operating: 32V DC
Temperature Min. Operating: -10°C
Temperature Max. Operating: 60°C
Type: Thermal trip, manual reset
Terminals: 8 Screw Terminals or 1/4" Male Quick Connect Terminals
Screw Terminal Torque: 6 in-lb max.
Amps: 25

Push Button Reset Only Screw Terminal Circuit Breaker - 25 AmpsFeatures:
Branch circuit breakers (can also be used for 24-hour circuit protection)
Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
Compact design enables high density circuit protection configurations
Push-to-reset operation
"Trip Free" design cannot be held "ON" during fault current condition
Ignition protected - Safe for installation aboard gasoline powered boats
Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and crackingSpecifications:
Amperage: 25A
Maximum Voltage: 32V DC
Mounting: Panel Mount 3/8-27 UNS
Circuit Breaker Type: Thermal trip, manual push-button reset only
Terminal Type: #8 Screw
Interrupt Capacity: 3000A @ 14.7V / 2500A @ 28V
Minimum Operating Temperature: -10° C
Maximum Operating Temperature: 60° C
Screw Terminal Torque: 6 in-lb (0.68 Nm)
Weight: 0.09lb (0.04 kg)WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
Amperage: 25a
Box Dimensions: 1"H x 3"W x 5"L WT: 0.1 lbs
UPC: 632085021351
