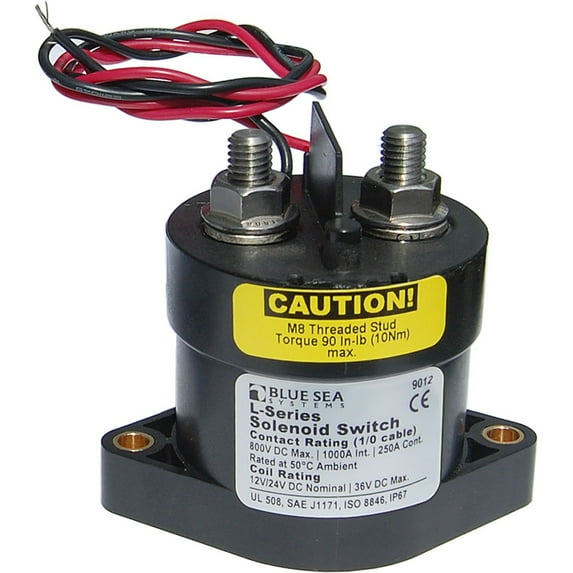

Hero image 0 of Blue Sea Systems Solenoid Switch 9012, 0 of 2

Blue Sea Systems

Blue Sea Systems Solenoid Switch 9012

(No ratings yet)

Key item features

Robust Construction: Features hermetically sealed contacts and is vaporproof, ensuring durability and safe operation in marine environments.
Ignition Protection: Designed with ignition protection, making it safe for installation aboard gasoline-powered boats.
Versatile Control: Activated by a low amperage ON-OFF switch that can be mounted anywhere, offering flexible control options.
Efficient Power: Integrated coil control minimizes heating and amperage draw, operating efficiently on 12V DC or 24V DC systems.
High Amperage: Offers a continuous rating of 250A to 450A depending on wire size, and an impressive 2000A inrush rating.
Compact Design: Weighs 1.00lb (0.45 kg) with box dimensions of 3"H x 4"W x 7"L, facilitating easy installation.

Generated by AI

Specs

Boat accessory type
Battery Switches
Brand
Blue Sea Systems
Features
LED Lighting
Material
metal
Color
Multicolor
Has written warranty
No

Current price is $230.49

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Ships to

Arrives by Thu, May 21

Sold and shipped by Crimp Supply

4.356687898089172 stars out of 5, based on 471 seller reviews(4.4)

Report an issue with this seller

Free 30-day returns

More seller options (9)

Starting from $247.99

About this item

Product details

Solenoid Switch, L Series, 12/24VDC w/Coil Economizer, MFG# 9012, Grey, Ignition Protection, 60 VDC, 2000 Amp Inrush, 250 Amp continuous capacity. Operated by remote switch.

L Solenoid Switch - 12-24VDC - 250AFeatures:
Hermetically sealed contacts / vaporproof
Ignition protected - safe for installation aboard gasoline powered boats
Activated by an ON-OFF switch mounted anywhere
Integrated coil control minimizes heating and amperage draw
450 Amp Class
Designed for 12 or 24 Volt systems
Ignition protected -- safe for installation aboard gasoline-powered boats
Activated by a low amperage ON-OFF switch mounted anywhereSpecifications:
Control Circuit Connection: 20 AWG Tinned Wire
Nominal Voltage: 12V DC / 24V DC
Coil Function: Normally Open
Mounting: #10
Operating Amperage Current: 3.6A when changing state
Amperage Operating Current: 0.13A @ 12 V / 0.07A @ 24 V
Terminal Stud Torque: 90 in-lb (10.17 Nm)
Continuous Rating: 250A Using 1/0 Wire Size / 300A Using 2/0 Wire Size / 400A Using 4/0 Wire Size / 450A Using 2 x (2/0) Wire Size
Intermittent Rating: 275A (5 min) Using 1/0 Wire Size / 400A (5 min) Using 2/0 Wire Size / 500A (5 min) Using 4/0 Wire Size / 600A (5 min) Using 2 x (2/0) Wire Size
Cranking Rating 30 sec: 1,000A / 1000A DC
Contact Form: SPST-NO
Input Voltage: 9-36V DC
Inrush Rating: 0.25 sec (10 repeats): 2000A
Switching Cycles: 1,000,000
Terminal Stud: Serrated Flange Nut
Terminal Stud Length: 0.66" (16.76mm)
Terminal Stud Size: 5/16" (M8)
Weight: 1.00lb (0.45 kg)This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications:
Continuous Amperage: 450a
Box Dimensions: 3"H x 4"W x 7"L WT: 1 lbs
UPC: 632085090128Owner's Manual (pdf)
