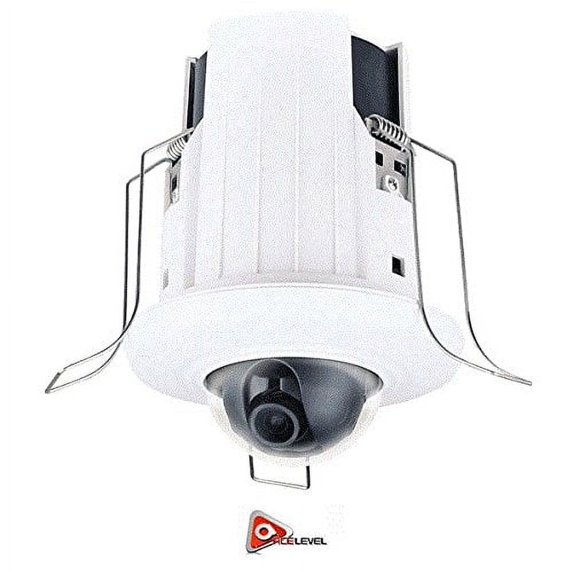

LTS, Surveillance Camera, CMIP7122, Fixed Lens In-Ceiling IP Network Dome Camera 2.1MP

Camera

• Image Sensor 1/3" Sensor
• Min. Illumination 0.01 lux @F1.2, AGC ON, 0 lux with IR
• Shutter Time 1/3s ~ 1/100,000s
• Lens 4mm
• Angle of view: 79°
• Lens Mount M12
• Day & Night Auto switch
• Digital Noise Reduction 3D DNR
• Wide Dynamic Range Digital WDR
• Ange Adjustment Pan: 0° - 355°, Tilt: 0° - 80°
• Compression Standard
• Video Compression H.264 / MJPEG
• H.264 Type BaseLine Profile / Main Profile
• Bit Rate 32 Kbps ~ 8Mbps
• Dual Stream Yes


• Max. Image Resolution 1920 x 1080
• Frame Rate
• 60Hz: 30fps (1920 ×1080), 30fps (1280×960),30fps (1280×720)
• 50Hz: 25fps (1920 ×1080),25fps (1280×960),25fps (1280×720)
• Image Settings
• Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
• BLC Yes, zone optional
• ROI Support

Network

• Network Storage
• Local storage: Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB. NAS (Support NFS,SMB/CIFS)
• Alarm Trigger
• Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis,Tampering alarm, Network disconnect,
• IP address conflict,
• Storage exception
• Protocols TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
• One-key reset, Flash-prevention, dual stream, heartbeat, mirror
  ,passwordprotection, privacy mask, watermark, IP address filtering, Anonymous access
• Standard ONVIF, PSIA, CGI, ISAPI

Interface

• Communication Interface 1 RJ45 10M/100M Ethernet interface

General

• Operating Conditions
• 14°F ~ 104 °F(-10 °C ~ 40°C ) humidity 95% or less (non-condensing)
• Power Supply 12 VDC ± 10% , PoE (802.3af)
• Power Consumption Max. 4.5W
• Dimension Φ3.7”× 4.8”(Φ93.9×121.6mm)
