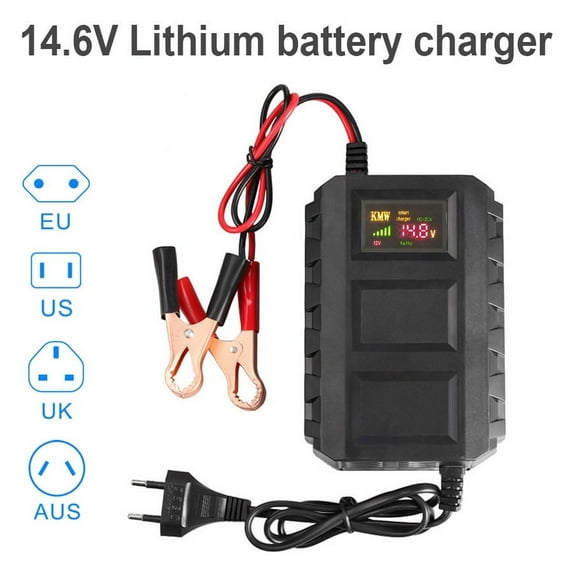

12V 14.6V Lithium Battery Charger Lifepo4 12.8V Lithium Iron Phosphate Battery Charger 20-100Ah Charging

Description:

• Product Name: Battery Charger
• KC-20A: 14.6V battery charger adopts intelligent micro-control chip, with all-round battery protection, wide voltage input, three-level intelligent charging, anti-reverse connection, anti-short circuit protection and other functions, suitable for 12.8V (3.2V 4S LiFePO4) Lithium iron phosphate battery
• Model: KC-20A 14.6v
• Size: 150 x 110 x 60 mm
• Battery type: 12.8V LiFePO4 battery (3.2V 4S)
• Applicable battery voltage: 4S 14.4V-14.6V
• Applicable battery capacity: 20ah-100ah
• Working power: 100-240Vac, 50~60Hz
• Output voltage: 14.8V±0.2v
• Output current: 8A
• Charging mode: Constant current-constant voltage-trickle (float charge) 3-level intelligent charging;
• Charging efficiency: ≥85% (full load)
• Working temperature: -5°C~+40°C
• Storage temperature: -40°C~+70°C

Charging instructions:

• Before charging, please check whether the rated voltage of the battery to be charged is consistent with the output voltage of the charger.
• Connect the power plug to an AC outlet.
• The charger output clip is clamped on the positive pole of the battery, and the black clip is clamped on the negative pole of the battery.
• At this point, the display will show the battery voltage and the current battery level in section 5 of the battery level indication. If the battery is charging normally, the green "full" light will turn off. (The power light of stage 5 is on, indicating that the current power of the battery is 20%, plus in sequence).
• After the charging is completed, please disconnect the power supply, and then disconnect the connection with the battery;

Safety Precautions:

• The charger has high voltages and is dangerous. If there is a fault, please contact the dealer or the manufacturer. Users and non-professionals of our company are strictly forbidden to open the charger!
• Since heat will inevitably be generated during charging, the charger and battery should be used in an indoor environment with good ventilation and good heat dissipation when charging. It is strictly forbidden to use the charger and battery in a humid, high temperature, flammable and explosive gas environment.
• It is strictly forbidden to charge the non-rechargeable battery to prevent explosion.
• Try not to short circuit and reverse connection! (While protected, deliberate action is not recommended)
• 3-stage charging mode - constant current, constant voltage, trickle (or floating).
• Safety design, short-circuit protection, over-current, over-voltage automatic monitoring current, switching charging mode.
• High-precision current and voltage locking to ensure full charging without overcharging.
• Over-current, over-voltage, short-circuit protection, safe and reliable.
• Conversion efficiency ≥ 87%, small size. Light weight. Efficient and environmentally friendly.

Packing list:

• 1 x Battery charger
• 1 x Manual
• 1 x Packing box

Note:

• Due to manual measurement, please allow 1-3cm error. Make sure you don't mind before bidding.
• Due to the difference of different monitors, the picture may not reflect the actual color of the product.
