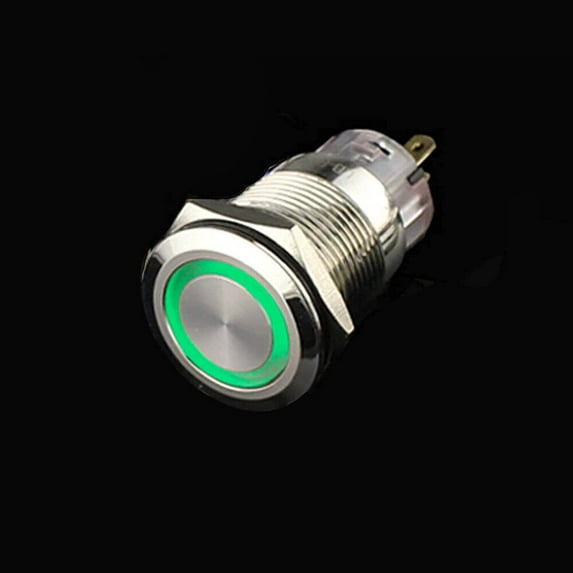

2pcs 19mm 12V LED ON OFF Push Button Power Switch Latching with Wire Socket Harness

Feature:
LED voltage: 12V - 24V
Hole size required: 0.74inch / 19mm
Latching switch: Press it, turn ON; Press it again, turn OFF.
Contact Configuration: 1NO 1NC
Electrical life: 500 thousand times.
Mechanical life: 1,000,000 cycles
High quality metal material & IP67 waterproof protection can be used in wet or dusty enviroment.
Used in a variety of applications including cars, boats, motorcycles and electronics modifications

Latching switch：
Operation Type: Latching (Push the button, ON; Push the button again, OFF)！！！

Specification:
- Switch Rating: 5A/250VAC
- Mechanical life: 1,000,000 cycles
- Electrical life: 500,000 cycles
- Protection level: IP67, IK10
- Mounting Cut Hole: 19mm
- Operation Type: Latching
- Switch Contact: 1NO 1NC
- LED Rating: 15mA, AC/DC 9-24V
- Contact Material: Silver alloy
- Button Material: Stainless Steel

Packing Include:
2 x Push button switch
2 x Pigtail socket

Note:
- The switch come with a rubber O-ring which makes it splash resistant but it can NOT be submerged underwater.
