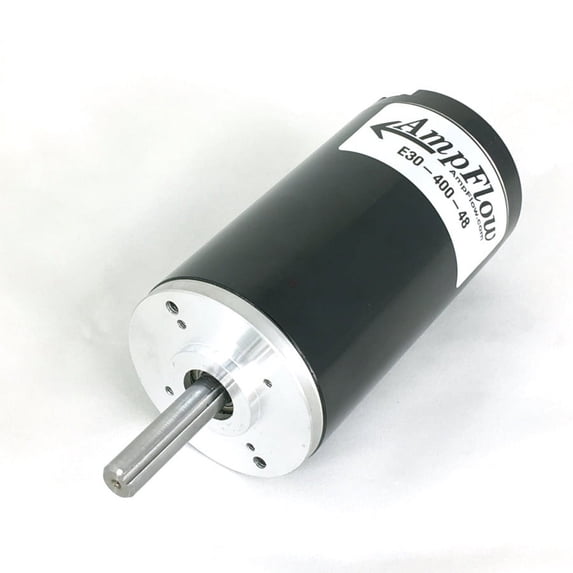

AmpFlow E30-400-48 Electric Motor

The AmpFlow E30-400-48 motor is designed to deliver good performance and efficiency at an economical price. This is achieved by using four brushes and advanced electromagnetic computer modeling and design.

This reversible motor can be used at voltages ranging from 24V to 72V (the RPM is proportional to the voltage.) At 48 Volts, it has a no-load speed of 5800 RPM. Peak short-term power output is 2000 Watts (2.7 horsepower). Peak efficiency of 82% is reached while drawing 15 Amps at 5300 RPM. The power output at 15 Amps is 600 Watts (0.80 horsepower).

These motors are made from two sturdy aluminum castings and a seamless body. The E30-400-48 motor is 3.1 inches in diameter and 5.8 inches long. The 1/2-inch diameter shaft is two inches long, and it rides in two high-quality ball bearings. There is a short 3/8-inch diameter shaft on the rear of the motor for mounting an optical encoder. The heavy-gauge 12 AWG motor leads are 18 inches long. The motor weighs 5.9 pounds, and it is finished in a high-quality black powder-coat paint.

This motor is also available with an optional gearhead. Search Amazon for "AmpFlow Gearmotors".

AmpFlow® motors are used in diverse applications, including robots, industrial motion control, factory automation, semiconductor manufacturing, power tools, pumps, and personal transport systems. Search for "AmpFlow motors" for more choices.
