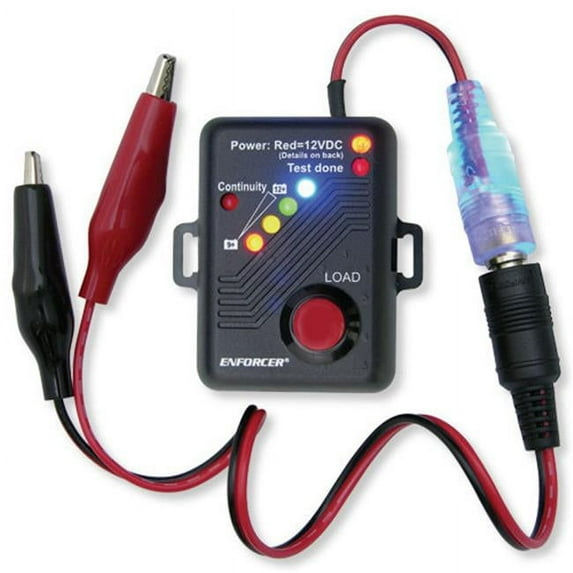

Seco Larm SESTBT02Q Enforcer 6-in-1 Multi-Purpose 12VDC Tester

The Enforcer ST-BT02Q is more than just a battery tester. The 6-in-1 Multi-Purpose 12VDC Tester is a compact unit that performs six essential troubleshooting tests in the field, including continuity testing. Four individually lit LEDs show the strength of the voltage present from excellent to poor, two separate LEDs show the progress of the test, and one LED shows continuity during continuity testing. The illuminated pigtail connector shows AC, DC, and polarity, while included alligator clips allow easy connection in any situation.

• Voltage.
• Load.
• Polarity.
• Voltage Drop.
• PTC Fuse.
• Continuity.

• Operating voltage - 5~12 VDC.
• Maximum load - 0.5 / 1 A (switch selectable).
• Power - Continuity - 3VDC CR1220 Battery (included); All other tests - passive, no power required.
• Performs 6 essential tests in the field
• Continuity Testing - Check the continuity of a circuit, wire run, or dry contact.
• Voltage Testing - Check the voltage of power sources in the field without a multimeter.
• Load Testing - Apply a simulated 1A or 500mA load to power sources to check the voltage under load.
• Polarity Testing - Check polarity of wires using the illuminated power connector.
• Voltage Drop Testing - Check the amount of voltage drop over long cable runs.
• PTC Fuse Testing - Check the integrity of PTC fuses.
• Strength indication LEDs help test Load, Voltage and PTC Fuses.
• Selectable lo ad - 0.5 A or 1 A to test wiring depending on location, device to be tested and anticipated voltage drop.
• Illuminated power connector - Clearly displays voltage polarity.
• Overheat indicator.
