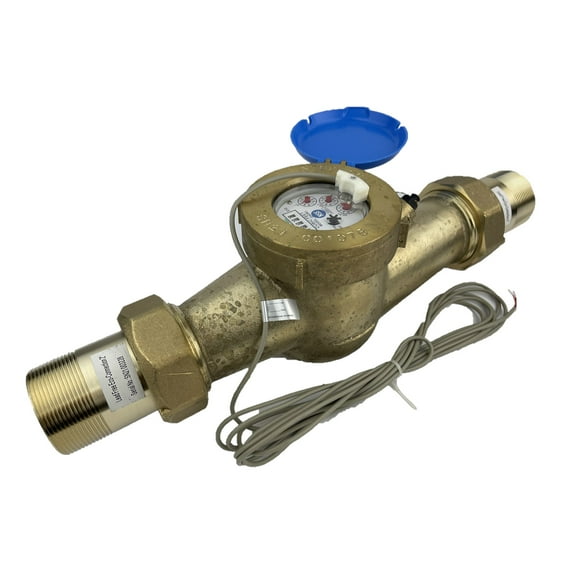

DAE MJ-200f 2" NTEP NSF61 Lead Free Potable Water Meter, Cubic Feet, Pulse Output + Couplings

2” National NTEP approval, NSF61 Certified, Lead-Free Potable Water Meter with Pulse Output, Measured in cubic feet, with Couplings (NPT Thread), Multi-Jet. Unit: cubic feet. Accuracy: +/-1.5% within normal flow rate range as per AWWA Standard. Pulse output: 0.1 cu ft/pulse, a dry contact (i.e. no voltage) reed switch with 2 wires, 1.5m. The switch may be damaged if input electricity is more than 0.01A, 24V. We shall not be responsible with the result if connecting to third party device which is not certified by DAE. Meter body: NSF61 Certified Lead-Free Brass. Length without couplings: 287 mm (11.3 inches), Length with couplings: 432 mm (17 inches). Dimension: 287 mm (11.3") length, 122 mm (4.8") wide, 142 mm (5.6") height. Weight: 6.59 kg (14.5 lbs). NSF61 Certified Lead Free Couplings Included. Max Reading: 999,999.999 cu ft, Min Reading: 0.001 cu ft. The 1st digit from the right has a multiplier of 10 cu ft. For example, if you see 01234 on the digits, it is 12340 cu ft. The 1st dial under the digits is in cu ft . The 2nd dial under the digits has a multiplier of 0.1 cu ft. Max working pressure: 1.6 Mpa (232 psi), exceeding the requirement from AWWA standard 150 psi. Max temperature: 122˚F (50˚C). Pressure drop: 0.254 psi @ 160.42 cu ft/h (20 GPM), 0.986 psi @ 320.83 cu ft/h (40 GPM), 3.050 psi @ 481.25 cu ft/h (60 GPM). Conforms to ISO 4064, AWWA C708, for City water only. Safe Maximum Flow Rate: 1,283.33 cu ft/h (160 GPM), Recommended Maximum Continuous Flow Rate: 641.67 cu ft/h (80 GPM), Minimum Test Flow Rate: 16.04 cu ft/h (2 GPM), Normal Test Flow Limits: 64.17-1,283.33 cu ft/h (8-160 GPM). Bore diameter: 2.01 inch (51.1mm). For the buyers outside of USA, in addition to the tax, the carriers may charge brokerage fee.
