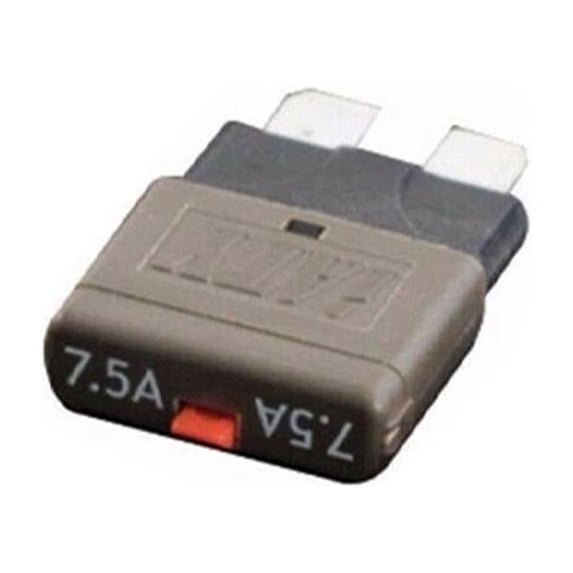

1Pc Circuit Breaker Blade Fuse 12V 24V Resettable 7.5A Marine automatic reset

Specification:

Thermal circuit breaker, standard size blade, suitable for standard car blade fuse box. Suitable for automotive, marine and racing applications

Voltage: Suitable for 12 and 24V applications, up to 28VDC

Rated current: 5A/7.5A/10A/15A/20A/25A/30A (optional)

Reset type: automatic reset

Operating temperature: -40oC (-40oF) to 85oC (185oF)

Dimensions Length: 19.7 Width: 6.2 Height: 29.5 Unit: mm

Weight: 5 grams

Standard: RoHS SAEJ 553; SAEJ 1171 (ignition protection); UL1500

Termination: 5.2mm wide blade (ATC type)

Storage temperature: -40oC (-40oF) to 125oC (260oF)

The package includes: 1 x circuit breaker fuse

Note:

Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Manual measurement, please allow 1-10mm error. Thanks for your understanding.
