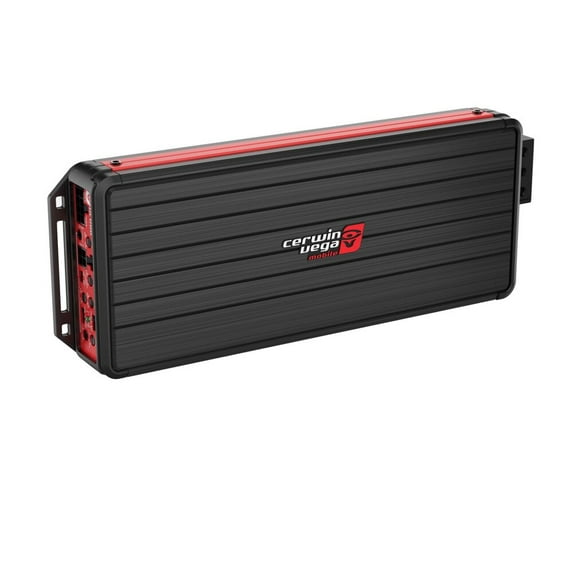

Hero image 0 of CERWIN VEGA VCU81 500W RMS CLASS-D DIGITAL MONOBLOCK FULL-RANGE CAR AMPLIFIER, 0 of 7

CERWIN VEGA VCU81 500W RMS CLASS-D DIGITAL MONOBLOCK FULL-RANGE CAR AMPLIFIER

(No ratings yet)

Key item features

Product Details:
- VEGA Series Class D 1 ohms Stable Monoblock Amplifier
- RMS Power Rating:
- 4 ohms: 240 watts x 1 channel
- 2 ohms: 400 watts x 1 channel
- 1 ohm: 600 watts x 1 channel
- Total RMS power output: 500 watts
- LED Power/Protect Light
- Wired bass level remote control included
- Speaker-level (high-level) inputs
- Signal sensing remote turn-on
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Conformal-coated circuit boards
- Sleek and compact design
- Water resistant
- Input sensitivity:
- Low level: 200mV - 10.0 volts
- High level: 200mV - 10.0 volts
- Total Harmonic Distortion (THD): 0.5%
- Signal to Noise Ratio: -101.1 dB
- Variable low-pass filter: 40 - 400 Hz
- Subsonic filter: 10 - 55 Hz
- Variable Bass Boost: 0 - 12 dB
- Fuse Rating: 25A
- 4 AWG gauge amplifier wiring kit is recommended for installation
- Dimensions: 7.7" L x 4.02" W x 1.4" H
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
- MFR #: VCU81
Key Features
- Amplifier Key Features - Bass Boost, Compact Design, Speaker Level Inputs, Weather-Resistant
Power Specifications - Subwoofer Channel
- RMS Power @ 4 ohms - 240 watts x 1 channel
- RMS Power @ 2 ohms - 400 watts x 1 channel
- RMS Power @ 1 ohm - 600 watts x 1 channel
Amplifier Specifications
- Series - VEGA Series
- Amplifier Class - D
- Number of Channels - 1 - Mono
- Total Peak Power Output - 1000 watts
- Total RMS Power Output - 500 watts
- Maximum Input Gauge Size - 4 AWG
- Minimum Impedance Unbridged - 1 ohms
- Minimum Impedance Bridged - Not Bridgeable
- THD at Rated RMS Power - 0.5%
- Speaker Level Inputs - Yes
- Preamp Outputs - No
- Built-in Crossover - Low-Pass (LP), Subsonic
- Low-Pass Crossover Frequency - 40 - 400 Hz
- Subsonic Filter - 10 - 55 Hz
- Signal-to-Noise Ratio - -101.1 dB
- Bass Boost - 0 - 12 dB
- Remote bass/level controller - Yes
- Fuse Rating - 25A x 1
- Total Fuse Rating - 25
- Strappable - No
- Sonic Certified Amplifier - Not Tested
- Amp Bluetooth Connectivity - No
- Hi-Res Certified - No
- Low-Level Input Sensitivity - 200mV - 10.0 volts
- High-Level Input Sensitivity - 200mV - 10.0 volts
What is in the box?
- Paperwork - User manual, Warranty/Registration card
- WITB: Amplifiers - Amplifier, Wired gain knob (wire attached), Mounting screws (4)
Warranty and Return Policy
- Parts Warranty Duration - 1 year
- Labor Warranty Duration - 1 year
- Warranty Provider - Manufacturer

Specs

Brand
Cerwin-Vega
Rms power rating
500 W
Channels
1
Impedance
1 ohm
Features
Compact
Peak audio power handling
1000 W

Price when purchased online

Walmart Protection Plan by Allstate

(Only one option can be selected at a time)

3-Year Plan - $36.00

4-Year Plan - $49.00

Report an issue with this seller

More seller options (1)

Starting from $359.99

About this item

Product details

1-Channel Monoblock Class-D Car Audio Amplifier
Power Rating:
- 1-Ohm: 600 Watts x 1 Channel
- 2-Ohm: 400 Watts x 1 Channel
- 4-Ohm: 240 Watts x 1 Channel
High-Power Full-Range Digital Class D Advanced Technology IR Chipset
Surface Mount Component Technology
Conformal-Coated IPX Certified 4-Layer Black PCB
Remote REM/DC/VOX Turn On Trigger
Variable/Switchable Crossovers On Multi-Channel Models
Uniform Heatsink Chassis Size/Dimensions Exlcuding 5-Ch Model
Compact Universal All-Weather Application
Remote Level Control Included For Mono And 2-Ch Models

Product Details:
- VEGA Series Class D 1 ohms Stable Monoblock Amplifier
- RMS Power Rating:
- 4 ohms: 240 watts x 1 channel
- 2 ohms: 400 watts x 1 channel
- 1 ohm: 600 watts x 1 channel
- Total RMS power output: 500 watts
- LED Power/Protect Light
- Wired bass level remote control included
- Speaker-level (high-level) inputs
- Signal sensing remote turn-on
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Conformal-coated circuit boards
- Sleek and compact design
- Water resistant
- Input sensitivity:
- Low level: 200mV - 10.0 volts
- High level: 200mV - 10.0 volts
- Total Harmonic Distortion (THD): 0.5%
- Signal to Noise Ratio: -101.1 dB
- Variable low-pass filter: 40 - 400 Hz
- Subsonic filter: 10 - 55 Hz
- Variable Bass Boost: 0 - 12 dB
- Fuse Rating: 25A
- 4 AWG gauge amplifier wiring kit is recommended for installation
- Dimensions: 7.7" L x 4.02" W x 1.4" H
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
- MFR #: VCU81
Key Features
- Amplifier Key Features - Bass Boost, Compact Design, Speaker Level Inputs, Weather-Resistant
Power Specifications - Subwoofer Channel
- RMS Power @ 4 ohms - 240 watts x 1 channel
- RMS Power @ 2 ohms - 400 watts x 1 channel
- RMS Power @ 1 ohm - 600 watts x 1 channel
Amplifier Specifications
- Series - VEGA Series
- Amplifier Class - D
- Number of Channels - 1 - Mono
- Total Peak Power Output - 1000 watts
- Total RMS Power Output - 500 watts
- Maximum Input Gauge Size - 4 AWG
- Minimum Impedance Unbridged - 1 ohms
- Minimum Impedance Bridged - Not Bridgeable
- THD at Rated RMS Power - 0.5%
- Speaker Level Inputs - Yes
- Preamp Outputs - No
- Built-in Crossover - Low-Pass (LP), Subsonic
- Low-Pass Crossover Frequency - 40 - 400 Hz
- Subsonic Filter - 10 - 55 Hz
- Signal-to-Noise Ratio - -101.1 dB
- Bass Boost - 0 - 12 dB
- Remote bass/level controller - Yes
- Fuse Rating - 25A x 1
- Total Fuse Rating - 25
- Strappable - No
- Sonic Certified Amplifier - Not Tested
- Amp Bluetooth Connectivity - No
- Hi-Res Certified - No
- Low-Level Input Sensitivity - 200mV - 10.0 volts
- High-Level Input Sensitivity - 200mV - 10.0 volts
What is in the box?
- Paperwork - User manual, Warranty/Registration card
- WITB: Amplifiers - Amplifier, Wired gain knob (wire attached), Mounting screws (4)
Warranty and Return Policy
- Parts Warranty Duration - 1 year
- Labor Warranty Duration - 1 year
- Warranty Provider - Manufacturer
