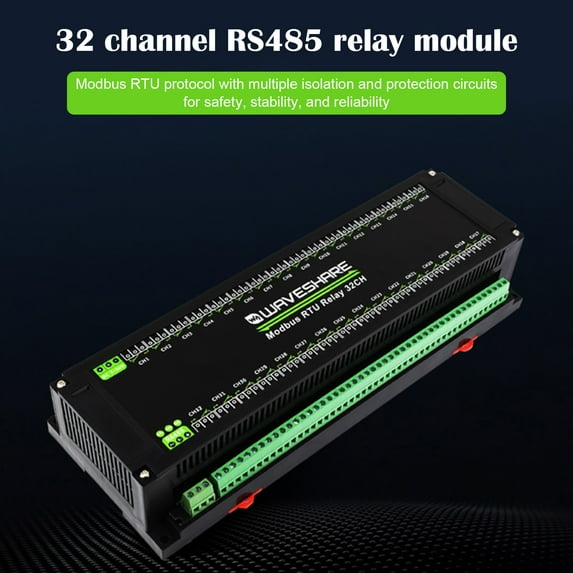

32-channel RS485 Interface Relay Module Multiple Isolation Protection Circuits

Modbus RTU 32-channel RS485 interface relay module with multiple isolation protection circuits

Features：
This series of products is a relay module controlled by an industrial RS485 interface. The number of relays can be 8/16/32, using Modbus RTU protocol, with built-in power isolation, ADI magnetic coupling isolation, self-recovery fuse and TVS protection circuits, ABS DIN rail shell design.
Support setting the device address (1~255), in order to cascade multiple devices through the RS485 bus, with flash open and flash off functions, and the onboard integrated power isolation can be automatically closed by commanding the relay to open for a period of time, which can provide stable Isolation voltage, no additional power supply is required for the isolation end.

Specifications:
Product model: Modbus RTU Relay 32CH
Working voltage: 7-36V
Communication interface: RS485
Communication baud rate: 4800.9600, 19200, 38400, 57600, 115200, 128000, 256000
Default communication format: 9600,N8,1
Number of relay channels: 32 channels
Contact type: one normally open, one normally closed
Contact load: ≤10A250VAC or ≤10A30VDC
Modbus protocol: standard ModbusRTU protocol
RS485 address setting: 1-255
Indicator light:
STA: MCU indicator light, flashes when the MCU is working normally
TXD: Send indicator light, the light is on when sending data
RXD: receiving indicator light, the light is on when receiving data

Package Included:
1x 32-way relay module [power supply not included]
