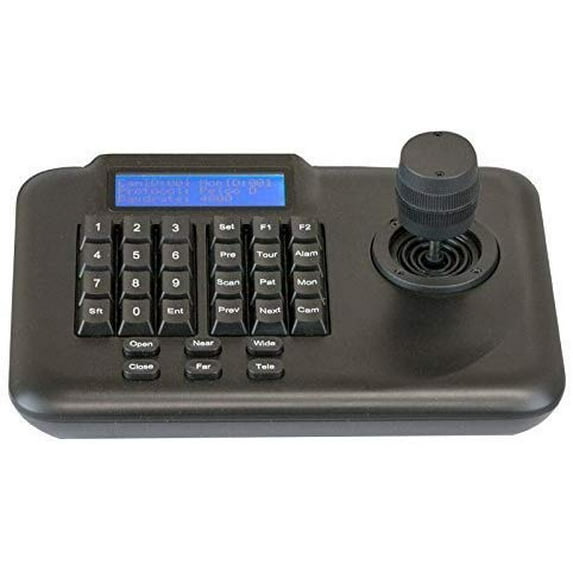

GW Security Pan Tilt Zoom PTZ Controller with 3 axis Joystick LCD Display CCTV Dome Camera 3D Keyboard Controller

Overview
3 Dimensional Pan-Tilt-Zoom Speed Dome Controller. This professional desktop joystick allows you to control the zoom in, zoom out, pan and tilt for up to 31 PTZ cameras. The unit allows both manual and automatic control of the PTZ cameras. Easy to setup and a breeze to operate. You can easily control the lens position with a joystick to track the object you are monitoring.

Feature
Using 3 axis joystick to control the Pan/Tilt direction and speed of the dome camera. The speed of the pan/tilt mechanism is controlled by the angel of the joystick during operation. By changing the tilting angle of the joystick you can adjust the speed evenly and the camera will be focused automatically in the course of your scan to keep images in focus.Background lightRS485 Bus Line and a keyboard can connect 31 domes at most in the direct control modeIt can be compatible with all kinds of protocolsYou can control the Iris, Focus and ZoomYou can control the matrix and through which can control the dome indirectlyCommunication Interface: RS485 x 1, RS422 x 1, RJ453900 feet(1.2KM) Maximum Distance Communication (RS485 and RS422 can achieve it)It has been equipped with the 2D/3D joystick and the larger LCD screenThis PTZ controller is compatible with CCTV Analog, HD-AHD, HD-CVI, HD-TVI and HD-SDI PTZ cameras

Setup cruise for PTZ cameras:
You need to setup pointsStep 1: Setup the first point on the position of the camera view, then Press [Set], 1, [Pre]Step 2: Setup the second point on the position of the camera view, then Press [Set], 2, [Pre]Step 3: Then Press 98, [Pre]

Package Includes
(1) GWSDK76 PTZ Controller with power supply1 Year Warranty and Free Tech Support
