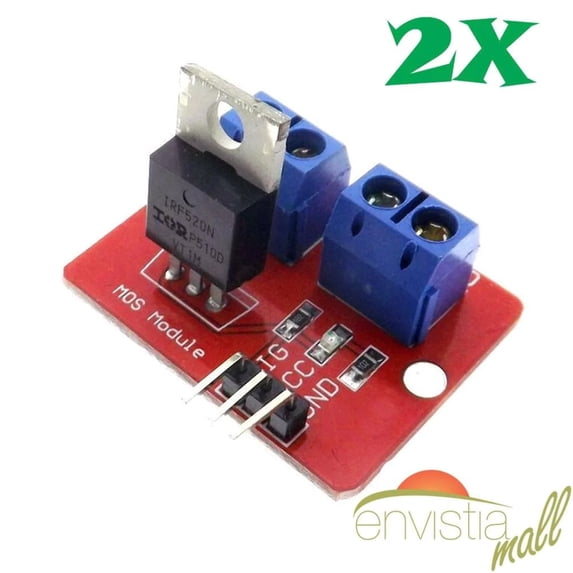

2Pcs IRF520 24V MOSFET Driver Module for Raspberry Pi Arduino ARM Robotics
2Pcs IRF520 24V MOSFET Driver Module for Raspberry Pi Arduino ARM Robotics
Hero image 0 of 2Pcs IRF520 24V MOSFET Driver Module for Raspberry Pi Arduino ARM Robotics, 0 of 3
Envistia Mall

2Pcs IRF520 24V MOSFET Driver Module for Raspberry Pi Arduino ARM Robotics

|1 rating

Key item features

  • Controls High-Power DC Loads from Microcontroller Logic: Connect SIG to any 3.3V or 5V digital output pin to switch DC loads up to 24V at up to 5A — far beyond what any GPIO pin can drive directly. Ideal for DC motors, LED strips, solenoid valves, pumps, fans, and relays that require more power than a microcontroller can deliver.
  • PWM Compatible for Dimming and Speed Control: Connect SIG to a PWM-capable pin for smooth LED dimming, variable DC motor speed control, and proportional power delivery. Works with Arduino analogWrite() and Raspberry Pi PWM — set the duty cycle from 0 (fully off) to 100 percent (fully on) with no additional driver circuit required.
  • Low-Side N-Channel MOSFET Switch with Onboard LED: The IRF520 N-channel MOSFET switches the ground/negative side of your load. Drive SIG HIGH to turn the load on; drive it LOW to turn it off. A blue onboard LED illuminates when the MOSFET is conducting, providing instant visual confirmation. Screw terminal connectors on the load side secure wiring without soldering.
  • Critical Safety Notes — Read Before Use: Always add a flyback diode (such as a 1N4007) across inductive loads like motors, solenoids, and relays — back-EMF spikes without one will permanently destroy the MOSFET. For continuous loads above 1A, attach a heat sink to the IRF520 MOSFET (not included). For DC loads only — never use to switch AC mains voltage.
  • Specifications and Package: MOSFET: IRF520 N-channel | Control voltage: 3.3V or 5V | Output: 0 to 24V DC, less than 5A | PWM: Yes | Low-side switch | Dimensions: approx. 33 x 24 mm (1.3 x 0.94 inches) L x W per module | Weight: 10g per module | Package: 2 modules included.
Current price is $7.89
Price when purchased online
  • Free shipping
  • Free 30-day returns

How do you want your item?

How do you want your item?
Ships to
Arrives by Fri, Aug 28
|
Sold and shipped by Envistia Mall
4.453900709219858 out of 5 stars
4.453900709219858 stars out of 5, based on 141 seller reviews(4.5)
Free 30-day returns

About this item

Product details

Specifications

Warranty

Customer ratings & reviews

5 out of 5 stars
stars
1 rating1 review
How item rating is calculated
  1. 5 stars100% (1)
  2. 4 stars0% (0)
  3. 3 stars0% (0)
  4. 2 stars0% (0)
  5. 1 star0% (0)
Filtered and sorted results would be available on the new 'Customer ratings & reviews' page.
Sort by |

Showing 1-1 of 1 review

Jun 25, 2026
Reviewer name: Andrew
Sold and shipped byEnvistia Mall
5 out of 5 stars
5 out of 5 stars review

Verified Purchase

its slightly different than heatsinks that typically fit these mosfets, but its a great product for the price
