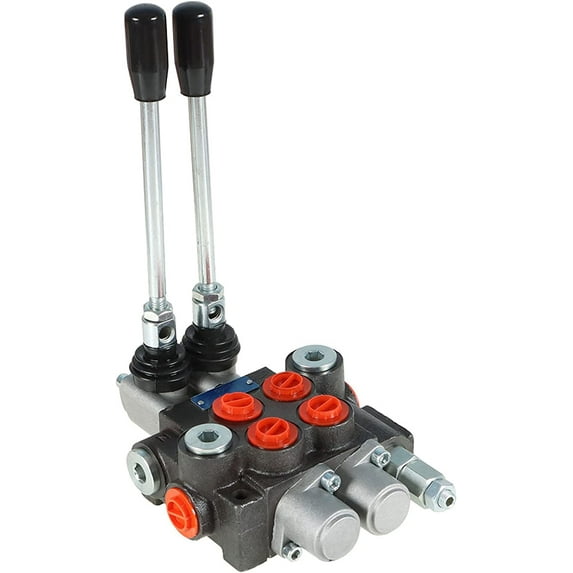

waltyotur Hydraulic Directional Double Acting Control Monoblock Valve, 2 Spool 11GPM SAE Ports w/ Joystick Hydraulic Directional Control Valve 3625 PSI Tractors Loaders Tanks

Hydraulic Directional Double Acting Control Monoblock Valve, 2 Spool 11GPM SAE Ports w/ Joystick Hydraulic Directional Control Valve 3625 PSI Tractors Loaders Tanks

Specification:
Nominal flow: 11 GPM
Max operating pressure: P=3625 PSI, T=725 PSI, A & B=4350 PSI
Preset Pressure Relief: 2610 PSI
A & B Work Ports: 8 SAE O-Ring (3/4"-16) Thread
Inlet Port: SAE 7/8-14
Outlet Port: SAE 7/8-14
Working Ports: SAE7/8-14
Center system: Open
Relief valve: Adjustable

Features:
- The hydraulic directional control valve is of high tensile strength cast iron monolithic construction
- Durable for long service life, stable and reliable performance
- The 2 spools 11 GPM hydraulic control valve has the characteristics of small volume, large flow and stable operation
- Come with 2 spools and SAE O-ring in/out ports
- The hydraulic directional control valve has a relief valve range of up to 3625 PSI and a maximum flow of 11 GPM
- Hydraulic directional control valve is used in agricultural machines tractors sprayers construction machines loaders excavators etc

Package Includes:
1 x 2 Spool 11GPM Double acting hydraulic directional control valve
