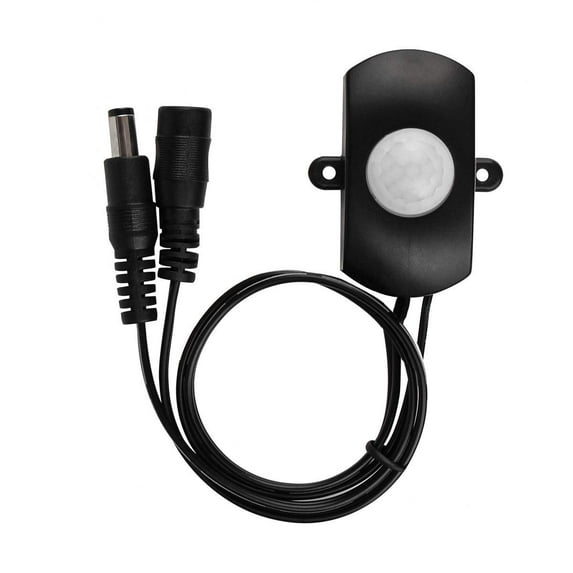

Dosaele 4A DC 5-24V Mini PIR Infrared Motion Sensor Detector Automatic Switch LED Strip USB Interface , IR sensor light switch,switch for led

Main Features:

Automatic Induction. The light will be activated ON/OFF by auto PIR motion detection

Flexible timing setting from 15s to 360s for how long the light stays on.（The initial setting is 15s）

3 to 6 meters detecting range and high sensitivity

Easy to install. Widely used on motion-activated lighting, LED strips and others

Energy-saving and low heat and low power consumption

Specifications:

Brand Name:Dosaele

Material:Flame retardant ABS.

Operating voltage: 5V-24 DC

Output current: 4A

Working temperature: -20°C~50°C

Function: Infrared human body sensor switch

Quiescent current: <100uA

Trigger mode: Continuous trigger

Output Mode: Inductive Output

Sensing distance: 3-6m

Sensing angle: 120 degrees

Induction mode: Passive

Time Range: Default setting 15s, Adjustable

Color: Black, White (Optional)

Package List:

1 * PIR Motion Sensor Switch

2 * Screws
