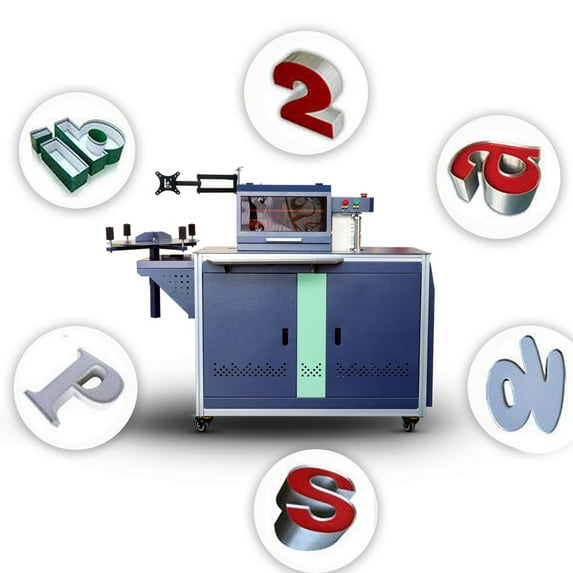

Qomolangma Automatic Channel Letter Fabrication Bender Machine for Aluminum Channelume/ Let-r-Edge Coil

(No ratings yet)

Key item features

Remark:
The air pump and computer is not included, please prepare it by yourself.The air pump should be above 0.6Mpa and computer should be W7 32-bit with PCI slot.
Features
1. It is a unique machine to make channel letters in the world.
2. Automatic feed, automatic slot, automatic bend and automatic to adjust cutting depth.
3. Working Principle: It controlled by the computer, can finish Letter Return/Outside in one time after click" Run" button.
4. High speed.
5. High precision. Bend the letter" return" that match perfectly to the cnc router-cut face and back
6. Low labor cost. Our Channel Letter bender has a production capability equivalent to about 10-20 people.
7. Low energy consumption.
8. Multiple specifications of aluminum material available.
9. CE certificate
Remark:
The air pump and computer is not included, please prepare it by yourself.The air pump should be above 0.6Mpa and computer should be W7 32-bit with PCI slot.
Advantages:
1. Encoder control feeding length, Auto-Compensation on slipping.
2. Adjust cutting depth automatically by software.
3. The whole machine adjust by software, no any working part adjusted by hand any more.
4. Easy to Adjust. With more functional software, one software setting could work on different material.
5. Bender Device(Head) adopt Steel Structure:
As the main structure of the machine, the bender device(Head) made by steel, more stable and stronger during bend-working.
6. As the core part of motion card, we use high-class CPU. Its cost come up to 2-3 times than other machine suppliers.
7. Software more functional: compensation on straight line, arc, inline, outline, start and end location more functional; Bender machine and router perfect match.
8. Easy to Adjust. With more functional software, one software setting could work on different material.
9. Can read AI,DXF and PLT format. Perfect match CNC Router.
Specification:
Working Principle: Auto feed, Auto Slot(Cut), Auto Bend/Auto Adjust Cutting Depth By Software (Brand-New Technology owned by Dahe Company)
Processing Material: Aluminum, Channelume and other custom alu Profile
Material Height: 20-150mm (0.79-5.9in)
Material Thickness: 0.2-1.2mm (0.008-0.047in)
Slot Degree: 45-135 Degree
Speed: 600-1000 Meters/8 Hour
Min Bending Diameter: ≧12mm(0.47in)
Voltage: 220V
Power: ≤1500W
Max Bending Angle: 360 degree
Max Approach Speed (in/sec): 4
Max Bending Speed (in/sec): 40
File Format: AI,Dxf,plt
Air Compressor: 0.6 Mpa
Machine Size: 1350*700*1300mm (53.1*27.6*51.2in)
Machine Weight: 220KG(485lb)
Packing Size: 1510*810*1400mm (59.4*31.9*55.1in)
Gross Weight: 260KG (573lb)

Specs

Brand
Qomolangma
Material
Metal
Piece count
1
Features
Automatic

Current price is $5,049.00

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Columbus, 43215

Arrives between Apr 17 - Apr 22

Sold and shipped by qomolangma

4.428571428571429 stars out of 5, based on 14 seller reviews(4.4)

Report an issue with this seller

Free 30-day returns

About this item

Product details

As the QOMOLANGMA Brand was born to follow noble concept, all QOMOLANGMA products are featured by high quality. Qomolangma is a leading brand that mix together in equipment, material and tools. Provide customers with one-stop service system.
Automatic Channel Letter Fabrication Bender Machine for Aluminum Channelume/ Let-r-Edge Coil

Remark:
The air pump and computer is not included, please prepare it by yourself.The air pump should be above 0.6Mpa and computer should be W7 32-bit with PCI slot.
Features
1. It is a unique machine to make channel letters in the world.
2. Automatic feed, automatic slot, automatic bend and automatic to adjust cutting depth.
3. Working Principle: It controlled by the computer, can finish Letter Return/Outside in one time after click" Run" button.
4. High speed.
5. High precision. Bend the letter" return" that match perfectly to the cnc router-cut face and back
6. Low labor cost. Our Channel Letter bender has a production capability equivalent to about 10-20 people.
7. Low energy consumption.
8. Multiple specifications of aluminum material available.
9. CE certificate
Remark:
The air pump and computer is not included, please prepare it by yourself.The air pump should be above 0.6Mpa and computer should be W7 32-bit with PCI slot.
Advantages:
1. Encoder control feeding length, Auto-Compensation on slipping.
2. Adjust cutting depth automatically by software.
3. The whole machine adjust by software, no any working part adjusted by hand any more.
4. Easy to Adjust. With more functional software, one software setting could work on different material.
5. Bender Device(Head) adopt Steel Structure:
As the main structure of the machine, the bender device(Head) made by steel, more stable and stronger during bend-working.
6. As the core part of motion card, we use high-class CPU. Its cost come up to 2-3 times than other machine suppliers.
7. Software more functional: compensation on straight line, arc, inline, outline, start and end location more functional; Bender machine and router perfect match.
8. Easy to Adjust. With more functional software, one software setting could work on different material.
9. Can read AI,DXF and PLT format. Perfect match CNC Router.
Specification:
Working Principle: Auto feed, Auto Slot(Cut), Auto Bend/Auto Adjust Cutting Depth By Software (Brand-New Technology owned by Dahe Company)
Processing Material: Aluminum, Channelume and other custom alu Profile
Material Height: 20-150mm (0.79-5.9in)
Material Thickness: 0.2-1.2mm (0.008-0.047in)
Slot Degree: 45-135 Degree
Speed: 600-1000 Meters/8 Hour
Min Bending Diameter: ≧12mm(0.47in)
Voltage: 220V
Power: ≤1500W
Max Bending Angle: 360 degree
Max Approach Speed (in/sec): 4
Max Bending Speed (in/sec): 40
File Format: AI,Dxf,plt
Air Compressor: 0.6 Mpa
Machine Size: 1350*700*1300mm (53.1*27.6*51.2in)
Machine Weight: 220KG(485lb)
Packing Size: 1510*810*1400mm (59.4*31.9*55.1in)
Gross Weight: 260KG (573lb)
