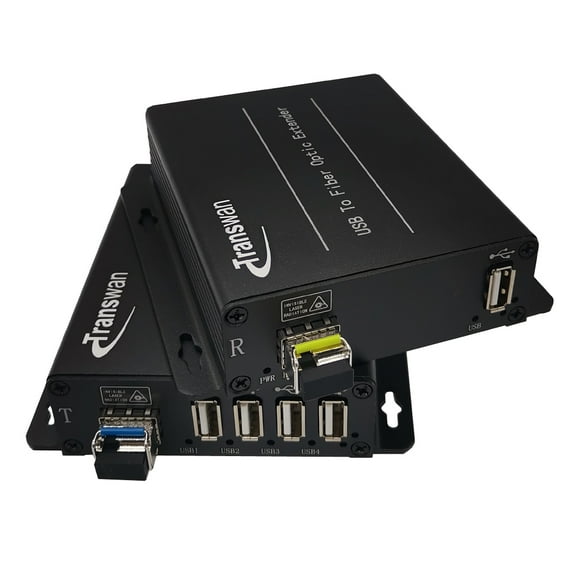

Transwan 4 Ports USB 2.0/1.1 hub Over Fiber Extender to Max 250 Meters (820 FT)1 Core SM or MM Fiber, w/SFP Module

Name: Transwan 4 Ports USB 2.0/1.1 hub Over Fiber Extender to Max 250 Meters (820 FT)1 Core SM or MM Fiber, w/SFP Module
Brand: Transwan
SKU: 2817346347
Price: 359 USD
Availability: InStock

(No ratings yet)

Transwan 4 Ports USB 2.0/1.1 hub Over Fiber Extender to Max 250 Meters (820 FT)1 Core SM or MM Fiber, w/SFP Module Transwan 4 Ports USB 2 0 1 1 hub Over Fiber Extender to Max 250 Meters 820 FT 1 Core SM or MM Fiber w SFP Module Transwan 4 Ports USB 2 0 1 1 hub Over Fiber Extender to Max 250 Meters 820 FT 2 Cores SM or MM Fiber w SFP Module

Edition:over 1 Core Fiber Cable

Key item features

Features:

4 ports USB 2.0 extend to 1 port over Fiber, or 1 port USB 2.0 splitted to 4 Ports USB 2.0 Max extension distance 250 Meters (SM or MM fiber).
1 fiber bi-directional transmission, pure hardware design, no driver needed, compatible with all operation systems, support plug and play
Auto recognition of High-speed（25Mbps～480Mbps）、Full-speed（500Kbps～12Mbps）、Low-speed（10Kbps～1.5Mbps）USB device;
Be compatible with all Operation systems like Windows, Mac OS, LINUX, UNIX etc.
Support USB1.1 and USB 2.0 devices, Such as Cameras, Printers, Scanners, Audio devices, USB touch screens, Game Controllers, Mouse and Keyboard Dongle, FTDI USB to RS232 Converter, FPGA Programmer, USB video capture device, Orientalmotor Controller, USB Bluetooth Dongle, USB headset, USB to RS232 Adapter, Spectrum Analyzer, Arbitrary Waveform Generator 33250A & 82357B, PicoScope PC Oscilloscope Kit etc

Optical Connector: 1 x LC

Wave length: 1310nm/1550nm

Support Fiber types: 50/125μm(MMF), 62.5/125μm(MMF), 9/125μm(SMF)

Physical Size (L× W ×H): 104mm x104mm x28mm

Case: Aluminum

Color: Black

N.W.: 0.75Kg

Power Voltage: 5~12V DC

Transmitter power consumption: <18W

Receiver power consumption: <3.5W

Environment

Working temperature: -20℃-70℃

Storage temperature: -40-85℃

Humidity: 0-95% (non-condensing)

USB interface(Type A):

Receiver: 1 port, connect to PC

Transmitter: 4 ports, connect to USB 2.0 device

Package:

1. 1 x transmitter (client side) with SFP optical module.

2. 1 x receiver (host side) with SFP optical module.

3. 1 x Power supply adapters DC 5~12V with US/EU/UK/AU plug for the transmitter.

4. 1 x USB 2.0 cable, the receiver powered by the local PC via USB cable.

5. 1 x Manual.

About shipment:

Once order received, we will worldwide deliver by DHL Express for about 1 week delivery.

Specs

Number of ports
4
Brand
Transwan
Has written warranty
No

Current price is $359.00

Price when purchased online

Free shipping
Free 30-day returns

Walmart Protection Plan by Allstate

(Only one option can be selected at a time)

3-Year Plan - $36.00

4-Year Plan - $49.00

Tech Setup

Remote Router Setup - $18.00

How do you want your item?

Ships to

Arrives between May 26 - Jun 2

Sold and shipped by Transwan Technology Co., Ltd

Report an issue with this seller

Free 30-day returns

About this item

Product details

BY-USB-388SF includes a transmitter and a receiver, which can extend USB 2.0 device to a remote location over 1 or 2 fiber cable, max distance 250 Meters (SM or MM fiber cable). it can also split 1 Channel USB 2.0 signal over fiber to 4 USB 2.0 ports in remote display.BY-USB-388 can be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc

Features:

4 ports USB 2.0 extend to 1 port over Fiber, or 1 port USB 2.0 splitted to 4 Ports USB 2.0 Max extension distance 250 Meters (SM or MM fiber).
1 fiber bi-directional transmission, pure hardware design, no driver needed, compatible with all operation systems, support plug and play
Auto recognition of High-speed（25Mbps～480Mbps）、Full-speed（500Kbps～12Mbps）、Low-speed（10Kbps～1.5Mbps）USB device;
Be compatible with all Operation systems like Windows, Mac OS, LINUX, UNIX etc.
Support USB1.1 and USB 2.0 devices, Such as Cameras, Printers, Scanners, Audio devices, USB touch screens, Game Controllers, Mouse and Keyboard Dongle, FTDI USB to RS232 Converter, FPGA Programmer, USB video capture device, Orientalmotor Controller, USB Bluetooth Dongle, USB headset, USB to RS232 Adapter, Spectrum Analyzer, Arbitrary Waveform Generator 33250A & 82357B, PicoScope PC Oscilloscope Kit etc

Optical Connector: 1 x LC

Wave length: 1310nm/1550nm

Support Fiber types: 50/125μm(MMF), 62.5/125μm(MMF), 9/125μm(SMF)

Physical Size (L× W ×H): 104mm x104mm x28mm

Case: Aluminum

Color: Black

N.W.: 0.75Kg

Power Voltage: 5~12V DC

Transmitter power consumption: <18W

Receiver power consumption: <3.5W

Environment

Working temperature: -20℃-70℃

Storage temperature: -40-85℃

Humidity: 0-95% (non-condensing)

USB interface(Type A):

Receiver: 1 port, connect to PC

Transmitter: 4 ports, connect to USB 2.0 device

Package:

1. 1 x transmitter (client side) with SFP optical module.

2. 1 x receiver (host side) with SFP optical module.

3. 1 x Power supply adapters DC 5~12V with US/EU/UK/AU plug for the transmitter.

4. 1 x USB 2.0 cable, the receiver powered by the local PC via USB cable.

5. 1 x Manual.

About shipment:

Once order received, we will worldwide deliver by DHL Express for about 1 week delivery.
