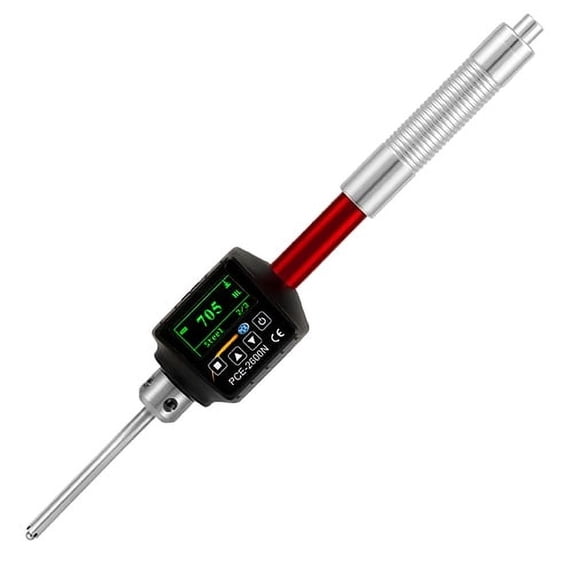

Metal Hardness Testing Durometer PCE-2600N

Name: Metal Hardness Testing Durometer PCE-2600N
Brand: PCE Instruments
SKU: 281434168
Price: 2235 USD
Availability: InStock

(No ratings yet)

Key item features

- Measurement method: According to Leeb
- Impactor: DL

- Measuring range:
HLD: 170 ... 960
HRC: 17.9 ... 69.5
HB: 19 ... 683
HV: 80 ... 1042
HS: 30.6 ... 102.6
HRA: 59.1 ... 88
HRB: 3.5 ... 101.7

- Measurement accuracy: HLD: ± 0.5%
- Maximum hardness: 1042 HV
- Striker: Type D
- Display: 128 x 64 mm / 5 x 2.5 in OLED
- Repeatability: HLD: ± 0.8%
- Hardness max.: 1042 HV
- Measurement units: HLD, HRC, HB, HV, HS, HRA, HRB
- Display: 15 mm / 0.59 in

- Material:
Steel
Cast steel
Alloy tool steel
Stainless steel
Cast iron
Nodular cast iron parts
Cast aluminum alloy
Brass
Bronze
Tin bronze

Measuring ranges on different material surfaces:

Material
- Steel:
HRC: 17.9 ... 68.5
HRB: 59.6 ... 99.6
HRA: 59.1 ... 85.8
HB: 127 ... 651
HV: 83 ... 976
HS: 32.2 ... 99.5

- Tool steel:
HRC: 17.9 ... 68.5
HRB: 59.6 ... 99.6
HRA: 59.1 ... 85.8
HB: 127 ... 651
HV: 83 ... 976
HS: 32.2 ... 99.5

- Stainless steel:
HRB: 46.5 ... 101.7
HB: 85 ... 655
HV: 85 ... 802

- Cast iron:
HB: 93 ... 334

- Brass:
HRB: 13.5 ... 95.3
HB: 40 ... 173

- Bronze:
HB: 60 ... 209

- Copper:
HB: 45 ... 315

Specs

Brand
PCE Instruments
Power type
Battery
Features
Handheld
Height
1 in
Weight
1.4 lb
Material
Stainless Steel

Current price is $2,235.00

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Ships to

Arrives by Tue, May 26

Sold and shipped by PCE Instruments

Report an issue with this seller

Free 30-day returns

About this item

Product details

The durometer is used wherever a fast hardness test has to be carried out. It is possible with the durometer to determine the surface hardness of many metals. The durometer is particularly suitable for quality or material inspection. The measured values can be stored in the internal memory and recalled later. Please note that the measured values can only be read from the durometer on the display and it does not offer any readout. One-hand operation of the durometer allows for convenient use in different locations. Due to its construction, the durometer also offers the possibility to determine the surface hardness in bores or other depressions. The small design of the durometer contributes to the functionality as does the light OLED. The OLED from the durometer shows many functions so that the user directly recognizes which parameters are measured, which measuring direction is selected, and which hardness has been measured.
