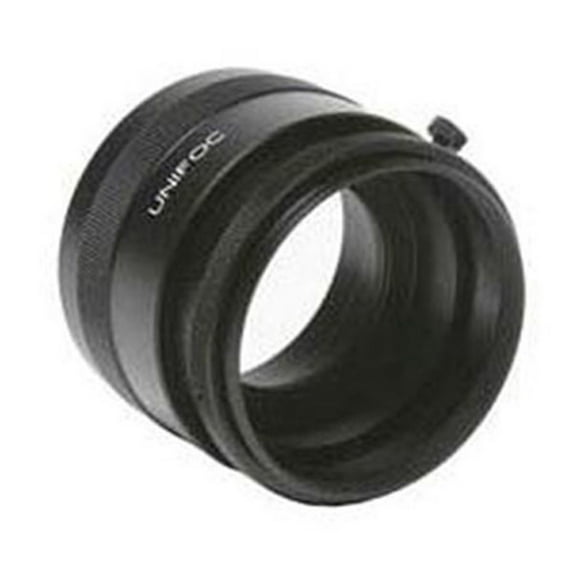

Schneider Unifoc76 Helical Focus Mount for Industrial/Scientific Applications

From the renowned brand Schneider comes the highly versatile Unifoc76 Helical Focus Mount, a professional-grade solution designed specifically for industrial and scientific applications. This comprehensive focusing system comprises a lens, a helical focusing mechanism, a camera adapter, and extension rings, all of which can be securely fastened using locking screws. The Unifoc76 system stands out due to its compatibility with a wide array of cameras, made possible by the extensive variety of available camera adapters and extension rings. This system is part of the Unifoc series, which also includes the Unifoc 12, ideal for macro imaging, and the Unifoc 58, designed for applications with sensors up to 40mm in length. The Unifoc76, however, is specifically engineered for applications with sensors up to 60mm in length. While the Unifoc 58 and Unifoc 76 share the same lenses, they differ primarily in their helical mounts. The lenses in the Unifoc 58/76 system are designed to deliver exceptional image quality for both line-scan and area scan cameras, even when imaging minute objects. The system offers nine standard lenses, with focal lengths ranging from 28mm to 100mm, and image diameters extending from 30mm to 96.8mm. Additional lenses can be requested as per specific needs. Each lens comes with a filter holder (M43 x 0.75mm) and connects to the fine adjustment mechanism via a Leica mount with a 39mm diameter. The helical mounts for the Unifoc 58 and 76 feature a displacement of 25.7mm and vary in their connector threads on the camera connection (M42 for Unifoc 58 and M58 for Unifoc 76). The Unifoc 76 system, with its large diameter at the camera end (M58), is particularly suited for use with long line sensors. The assembled size is application-specific, and the system offers four camera adapters and three extension rings. The Unifoc 76 range includes the UNIFOC 76 CAM-M72 Camera Adapter, the UNIFOC 76 HELICAL MOUNT Thread Mount for Enlarger lens, and the UNIFOC 76 TUBUS 10 and TUBUS 25 M72 Extension Tubes. In summary, the Unifoc76 Helical Focus Mount is a reliable, high-quality, and versatile solution for all your industrial and scientific imaging needs.
