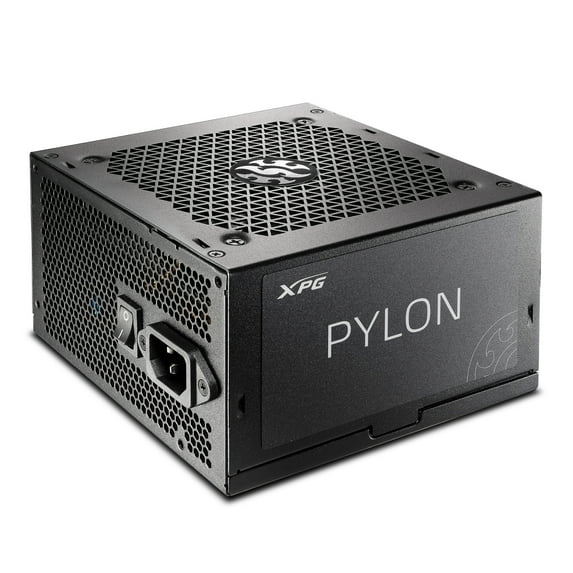

XPG PYLON ATX PSU 650W 80 Plus Bronze 19 Connectors Intex ATX 12V v2.52 650 Watt
Key item features
- 650W - DC to DC Converters
- 80 PLUS BRONZE Certified
- Continuous Power for 24/7 system operation
Specs
- Computer power supply form factorInternal
- BrandXPG
- Input voltage120 V AC, 230 V AC
- Internal/externalInternal
- Size3.4" x 5.5" x 5.9"
- ColorBlack
How do you want your item?
About this item
Product details
XPG PYLON offers more than just a BRONZE-certified Power Supply. Featuring DC-to-DC circuit design, 80 PLUS BRONZE Certification, Main Japanese Capacitor and up to 8 industrial protections, XPG PYLON BRONZE Series is ideal for most users
XPG PYLON features DC-to-DC 100% +12V Full Power in all PYLON series, ensuring power delivery remains consistent, powerefficient, and capable of supporting mid to high-end graphic cards and CPUs.
XPG PYLON is an 80 PLUS BRONZE certified power supply unit guarantees energy efficiency at 20%, 50% and 100% of rated load. XPG PYLON also complies with ErP 2014 Lot 3 Regulation, and is design for steady 24/7 Continuous Power system operation.
XPG PYLON SERIES is certified by Cybenetics for its efficiency and noise level, scoring at the top of its category in both ETA and LAMBDA standards.
Equipped with 120mm Fluid Dynamic Bearing (FDB) Fan, the fan control starts at around 700 RPM (25 deg. C ambient) and maintains its low fan speed until around 70% power load. The operation environment is quiet and efficient and prolongs its life expectancy.
High quality 105 deg. C Main Japanese Capacitor in XPG PYLON BRONZE Series ensures great durability and offer highest stability and reliability.
XPG PYLON is designed for both efficiency and safety, and backed up by a 3-Year warranty. Fundamental protections such as OPP, UVP, OVP, SCP, OTP and OCP are all included, as well as NLO and SIP which are found in mid to high-end PSU, offering one of the highest standards of stability and security in this category
SPECIFICATIONS:
Dimension W x L x H: 140 x 150 x 86mm
80 PLUS Rating: BRONZE
ATX Version: Intel V2.52
Protections: OCP / OVP / UVP / OPP / SCP / OTP / NLO / SIP
Certification: CE / UKCA / CB / FCC (IC) / EAC / CCC / TUV / cTUVus / TUV S-Mark / RCM / NOM / BSMI / BIS/KC
PFC: > 0.99
Wattage: 650W
Input Voltage: 100-240V
Input Current: 10-5A
Input Frequency: 50Hz - 60Hz
Operating Temperature: 50 deg. C
Fan Size: 120mm
Fan Bearing: FDB (Fluid Dynamic Bearing)
Fan Speed: 2,000 RPM
MTBF 25 Deg. C: 100K hours at full load
Motherboard 20+4 Pin Connector: 1
ATX 12V 4+4 Pin Connector: 2
PCI-E 6+2 Pin Connector: 4
SATA 5 Pin Connector: 8
Molex 4 Pin Connector: 3
Floppy 4 Pin Connector: 1
Warranty 3 Year
