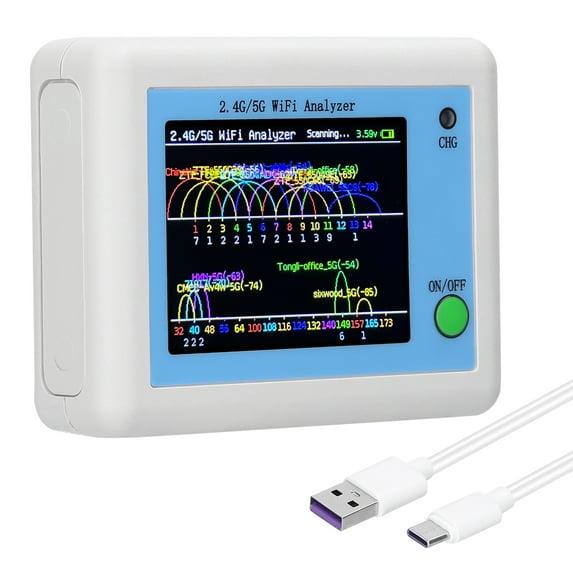

Yabuy WIFI Signal Scanner 2.4G/5G WIFI Signal Usage Analyzer Router Management Assistant with 2.4inch Color Display

In same environment, there are lots of wifi signals, same frequency point has more than one signal occupancy, affecting each other, it will cause your own wifi signal quality is very poor, use this assistant, you can easily check which frequency point has more signal, that frequency point is more free, you can adjust your own wifi, switch frequency point to more empty frequency point, improve communication quality of your own wifi. Features: 【TFT Color Display】: 2.4inch TFT color display, supports displaying wifi signal of all frequencies in 2.4G band, and number of wifi occupied by same frequency point. And it will automatic refresh. 【Battery Power Display】: With battery power display function, battery power is displayed in upper right corner of screen. 【Long Endurance】: Built-in 600mAh battery, working current 160mA, standby time is about 4 hours. 【Charging Management】: Use TYPE-C port for charging, built-in Li-ion charging management circuit. Charging time is about 2 hours. 【Charging Indicator】: 5V charging voltage, when charging, red light means analyzer is on charging; green light means fully charged. How to use: 1. Press and hold button to switch on, press and hold again to switch off. 2. Press button once to starts scanning, press it again to pause scanning. 3. waveform on upperline of screen shows wifi signal of all frequencies in 2.4G band, originally, only strongest one is displayed. However, if there is more than one signal in same frequency point, it is displayed with a number below corresponding scale, for example, number 5 is displayed to indicate that there are 5 wifi occupants in same frequency point. waveform at bottom of screen corresponds to waveform of a 5G signal. interpretation is same as above. As there are more frequency points for 5G signals, there is no way to have all frequency points marked on coordinates ruler. Specifications: Name: WIFI Signal Analyzer Material: plastics Item size: 91 * 71 * 30mm / 3.58 * 2.80 * 1.18in Item weight: 121g / 4.27ounce Package size: 155 * 105 * 43mm / 6.10 * 4.13 * 1.69in Package weight: 150g / 5.29ounce Packing List: 1 * WIFI Signal Analyzer 1 * Type-C Charging Cable
