Hero image 0 of 2 Rolls - Tapes Master 1 Mil 1/2 inch x 36 Yds Kapton Tapes - Polyimide High Temperature Tapes, 0 of 7

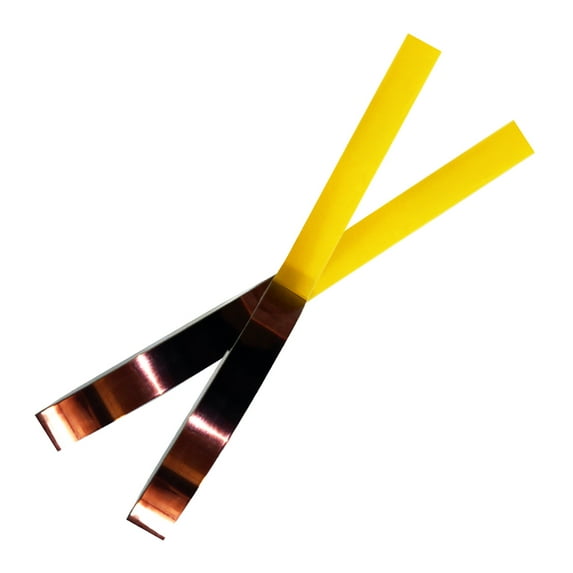

2 Rolls - Tapes Master 1 Mil 1/2 inch x 36 Yds Kapton Tapes - Polyimide High Temperature Tapes

Name: 2 Rolls - Tapes Master 1 Mil 1/2 inch x 36 Yds Kapton Tapes - Polyimide High Temperature Tapes
Brand: Tapes Master
SKU: 2744313109
Price: 12.95 USD
Availability: InStock

(No ratings yet)

Key item features

Product Features:

Alternative to 3M Kapton Tape 5413:
Tapes Master 1 Mil polyimide tape is alternative to 3M Kapton tape 5413. The tape is a HN general purpose amber color film with silicon adhesive and 3” polyethylene core. Rosh approved and Halogen Free.
High Temperature Resistant - Flame Retardant:
Polyimide tape not only flame retardant (at temperatures as low as -273°C (-459°F) and as high as 400°C (752°F)), but also chemical and radiation resistant which protects surfaces to help reduce replacement costs.
No Residue after Peeling Off:
Polyimide film does not soften at elevated temperatures, thus provides an excellent release surface at elevated temperatures. In addition, silicone adhesive's high temperature performance reduces adhesive transfer which helps to eliminate cleaning, enabling high productivity.
Protection, Insolation and Bonding:
Protection of gold fingers: of printed circuit boards during wave solder or solder dip process. Insulation and Bonding for electrical switches, motor, lithium battery under Grade H.
Surface for 3D Printers:
Kapton and ABS adhere to each other very well, therefore is the recommended use of Kapton as a bed surface for 3D printers.
Easy to Use:
1 Mil Polyimide Tape is thin, strong and conformable enabling masking of uneven surface. It is dimensionally stable at high temperatures, which prevents rework, enabling high productivity.

Application:

Electronics manufacturing
Bed surface for 3D printing
PCB solder masking
Protection of gold fingers during wave solder or solder dip process.
Release surface in fabrication of parts cured at elevated temperatures.
Powder coating under high temperature
Insulation and Bonding for electrical switches, motor or lithium battery.

Technical Specifications:
- Color: Amber
- Adhesion Type: Silicone
- Film Thickness: 1.2 Mil
- Adhesive Thickness: 1.5Mil
- Total Thickness: 2.7 Mil
- Adhesion to Steel: 25 oz//inch
- Tensile Strength: 30 (lbs/inch)
- Elongation: >40 %
- Dielectric Strength: 8,000 volts
- UL-94 Flammability Rating: V-0
- Insulation Resistance: 1,000,000 mega ohms
- Electrolytic Corrosion Factor: 1
- Insulation Class centigrade: 180°C
- Temperature Resistance: 260°C (500°F)
- Resistance to acids, oils, solvents: Excellent
- Length: 36 yards
Due to the variety of possible end-uses, it is ultimately the responsibility of the customer to determine a product's suitability for a particular application.

Specs

Adhesive tape type
Electrical Tape
Brand
Tapes Master
Roll length
36 in
Color
Amber
Tape backing thickness
1 mil
Material
Polyimide Film, Silicone Adhesive

Current price is $12.95

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Columbus, 43215

Arrives by Tue, May 12

Sold and shipped by Lucent PathPro Seller

4.589887640449438 stars out of 5, based on 178 seller reviews(4.6)

Report an issue with this seller

Free 30-day returns

About this item

Product details

Tapes Master polyimide tape is a HN general purpose polyimide film with silicon adhesive. Tapes Master kapton polyimide high temperature tapes shows excellent electrical insulation properties, excellent release surface at elevated temperatures, and excellent solvent resistant. Tapes Master polyimide tape remains stable and combines excellent physical, electrical, and mechanical properties; therefore, our tape has been used in various applications such as 3D printing, electronics manufacturing, spacecraft and satellite etc..

Product Features:

Alternative to 3M Kapton Tape 5413:
Tapes Master 1 Mil polyimide tape is alternative to 3M Kapton tape 5413. The tape is a HN general purpose amber color film with silicon adhesive and 3” polyethylene core. Rosh approved and Halogen Free.
High Temperature Resistant - Flame Retardant:
Polyimide tape not only flame retardant (at temperatures as low as -273°C (-459°F) and as high as 400°C (752°F)), but also chemical and radiation resistant which protects surfaces to help reduce replacement costs.
No Residue after Peeling Off:
Polyimide film does not soften at elevated temperatures, thus provides an excellent release surface at elevated temperatures. In addition, silicone adhesive's high temperature performance reduces adhesive transfer which helps to eliminate cleaning, enabling high productivity.
Protection, Insolation and Bonding:
Protection of gold fingers: of printed circuit boards during wave solder or solder dip process. Insulation and Bonding for electrical switches, motor, lithium battery under Grade H.
Surface for 3D Printers:
Kapton and ABS adhere to each other very well, therefore is the recommended use of Kapton as a bed surface for 3D printers.
Easy to Use:
1 Mil Polyimide Tape is thin, strong and conformable enabling masking of uneven surface. It is dimensionally stable at high temperatures, which prevents rework, enabling high productivity.

Application:

Electronics manufacturing
Bed surface for 3D printing
PCB solder masking
Protection of gold fingers during wave solder or solder dip process.
Release surface in fabrication of parts cured at elevated temperatures.
Powder coating under high temperature
Insulation and Bonding for electrical switches, motor or lithium battery.

Technical Specifications:
- Color: Amber
- Adhesion Type: Silicone
- Film Thickness: 1.2 Mil
- Adhesive Thickness: 1.5Mil
- Total Thickness: 2.7 Mil
- Adhesion to Steel: 25 oz//inch
- Tensile Strength: 30 (lbs/inch)
- Elongation: >40 %
- Dielectric Strength: 8,000 volts
- UL-94 Flammability Rating: V-0
- Insulation Resistance: 1,000,000 mega ohms
- Electrolytic Corrosion Factor: 1
- Insulation Class centigrade: 180°C
- Temperature Resistance: 260°C (500°F)
- Resistance to acids, oils, solvents: Excellent
- Length: 36 yards
Due to the variety of possible end-uses, it is ultimately the responsibility of the customer to determine a product's suitability for a particular application.
