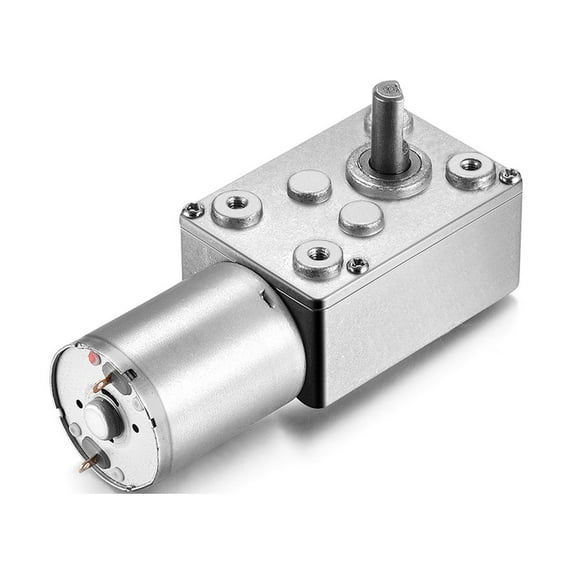

DC 12V 9RPM High Torque Turbine Worm Gear Box Reduction Motor Silver Tone

Description:
This type is miniature Worm Gear DC Motor, which can change shaft rotation direction while the wiring positive and negative be changed.
It is also have addition two characteristics: first, With self-locking, the output shaft can not rotation when switch off, that is self-locking. Second, Gearbox output shaft and motor shaft are come to be a rectangle.
It is widely used in various of ocns that require special install size.

Specifications:
Product Name: DC Motor
Model: JSX950-370
Rated Voltage: DC 12V
Color: Silver Gray
Net Weight: 151g
Material: Metal
Gear Box No-load Speed: 9RPM
Shaft Size: 6 x 14mm / 0.24inch x 0.31inch (D*L)
Main Body Size: 78 x 31 x 25mm (L*W*H)
Shaft Shape: D shaped shaft
Motor Pins Numbe: 2

Package Contents:
1 x DC Motor
