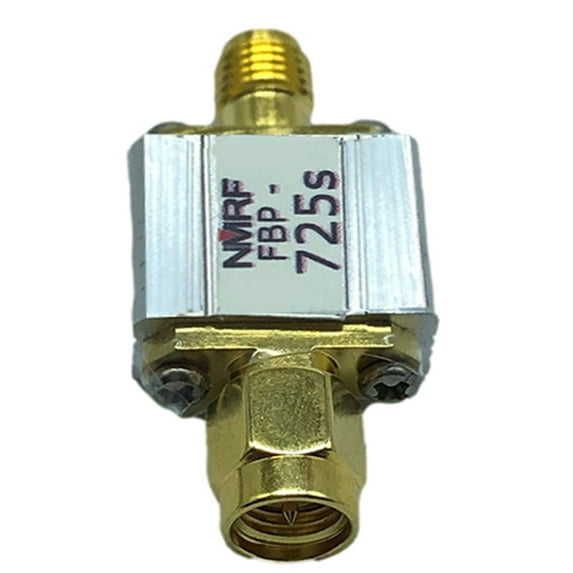

Bandpass Filter FBP-725s Saw Low-pass 703-748 MHz, 1DB Bandwidth 45MHz SMA Interface SMA-F SMA-M

Features:
brand new and high quality
This filter has a 1dB bandwidth of 45MHz and a steep cut-off characteristic. .
For RF signal testing in the 703 - 748 MHz frequency range
It is dedicated to the performance optimization of 725MHz receiving equipment.
It can effectively filter out-of-band signals, reduce noise, and increase dynamic range.
Use aluminum alloy shielded for shell, anti-interference, no out-of-band spurious response, compact and sturdy, easy to use.

Specifications:
Model: FBP-725s
Impedance: 50 Ohms
Center frequency: 725 MHz
Passband (1dB bandwidth): 703 to 748 MHz
In-band insertion loss:Less than 3.5 dB (typ: - 3.0 dB)
Maximum Carrying Power: 100 mW (20 dBm)
Interface: SMA-M, SMA-F
Size: approx 34x17.5mm/1.34x0.69in

Note:
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is 0-2cm.

Package includes:
1 x Bandpass Filter
