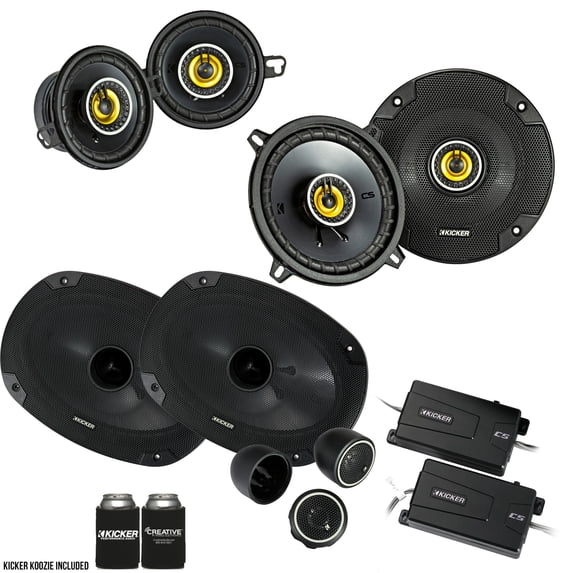

kicker for dodge ram truck 02-11 speaker bundle- cs 6x9" 3-way component speakers, cs 5.25" speakers, & cs 3.5" speakers

This bundle includes a pair of Kicker CS 6x9" component speakers, a pair of Kicker CS 5.25" coaxial speakers, and a pair of Kicker CS 3.5" Coaxial speakers.
*This bundle does not fit Mega Cab for Dodge Ram.

Kicker CS Series 6x9 Speakers 46CSS694
• Woofer Size | in [mm] - 6x9 [160x230]
• Tweeter Size | in [mm] - 3/4 [20]
• Dome Material - Titanium
• Peak Power | [watts] - 450
• Continuous Power | [watts RMS] - 150
• Effective Frequency Range | Hz - 30-21k
• Woofer Mounting Hole Diameter | in [mm] - 5 5/8 x 8 7/16 [143x215]
• Woofer Bottom Mount Depth | in [mm] - 3 3/16 [81]
• Flush Mounting Tweeter Hole Diameter | in [mm] - 1 9/16 [40]
• Flush Mount Tweeter Depth | in [mm] - 9/16 [14.5]
• High Pass | dB, at Frequency | Hz - 12, 4000
• Low Pass | dB, at Frequency | Hz - 12, 4000
• High Frequency Output Attenuation | dB - 0, 3, & 6
• Bolt-Thru Grilles - Yes

Kicker CS Series 5 Coaxial 46CSC54
• Speaker Design - 2 - way
• Woofer Size | in [mm] - 5 1/4 [130]
• Tweeter Size | in [mm] - 1/2 [13]
• DC Resistance | ohm - 3.4
• Peak Power | Watts - 225
• Continuous Power | Watts, RMS - 75
• Sensitivity [SPLo] | dB @ 1W, 1m - 90
• Effective Frequency Range | Hz - 45-20k
• Mounting Hole Diameter | in [mm] - 4 1/2 [115]
• Top Mount Depth | in [mm] - 1/4 [7]
• Bottom Mount Depth | in [mm] - 1 3/4 [45]
• Tweeter Protrusion | in [mm] - 0
• Grilles - Yes

Kicker CS Series 3.5 Coaxial 46CSC354
• Speaker Design 2 - way
• Woofer Size | in [mm] 3 1/2 [89]
• Tweeter Size | in [mm] - 1/2 [13]
• DC Resistance | ohm - 3.2
• Peak Power | Watts - 90
• Continuous Power | Watts, RMS - 30
• Sensitivity [SPLo] | dB @ 1W, 1m - 88
• Effective Frequency Range | Hz - 80-20k
• Mounting Hole Diameter | in [mm] - 3 [78]
• Top Mount Depth | in [mm] - 1/4 [6]
• Bottom Mount Depth | in [mm] - 1 11/16 [42]
• Tweeter Protrusion | in [mm] - 1/8 [3]
• Grilles - No
