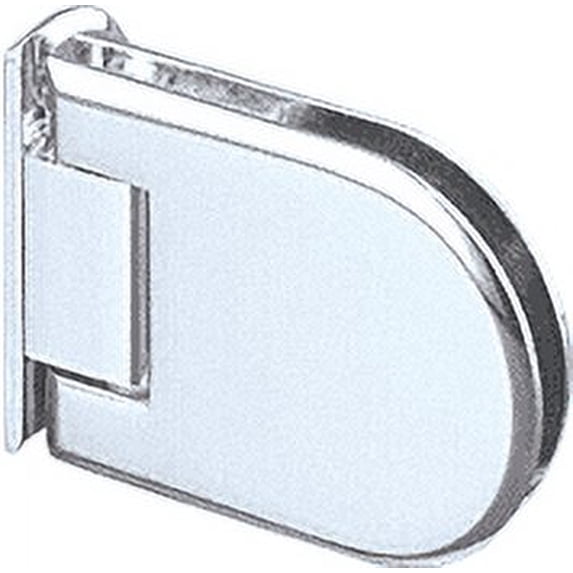

CRL BER044SC Satin Chrome Berlin 044 Series Wall Mount Offset Back Plate Hinge

The CRL Berlin Series of hinges combines elegant design with superb quality. This family of hinges features a Wall Mount Hinge with Offset Back Plate, which leaves the mounting plate visible only from inside the shower. Three Glass-to-Glass models round out the selection. Choose from a number of beautiful finishes to accentuate the décor of most bathrooms. Berlin Hinges are constructed of solid brass, and will provide a new inspiration combined with a classic past.
Using two hinges with 1/4" or 5/16" glass (6 or 8 mm) the hinge will hold up to 60 lbs. (27 kg) with a maximum door width of 28" (711 mm).
Using three hinges with 1/4" or 5/16" glass (6 or 8 mm) the hinge will hold up to 90 lbs. (41 kg) with a maximum door width of 32" (813 mm).
SPECIFICATIONS:
Glass Thickness: 1/4" (6 mm) to 5/16" (8 mm) Tempered Safety Glass
Special Features: Rounded design is ideal for "soft" décors.
Construction: Solid Brass
Hinge Swings: 90º In and 90º Out
Closing Type: Self-Centering when within 15º of closed position.
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
