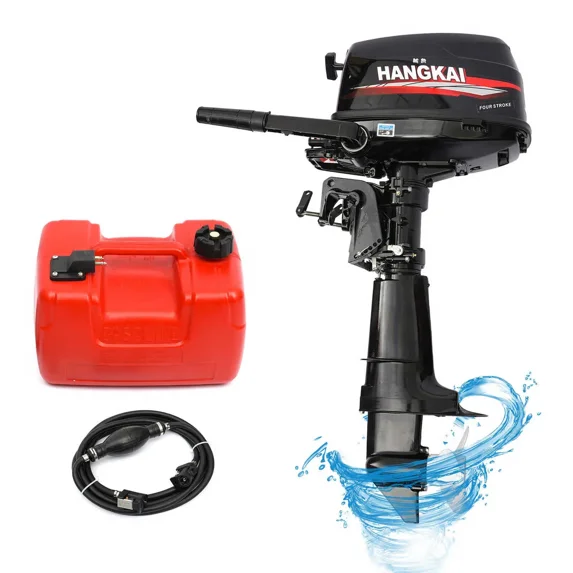

LOYALHEARTDY 6.5HP 4-Stroke Outboard Motor Fishing Boat Engine 123CC 4.8KW Outboard Engine with CDI Water Cooling System Short Shaft 6000Rpm

Hero image 0 of LOYALHEARTDY 6.5HP 4-Stroke Outboard Motor Fishing Boat Engine 123CC 4.8KW Outboard Engine with CDI Water Cooling System Short Shaft 6000Rpm, 0 of 12

LOYALHEARTDY

LOYALHEARTDY 6.5HP 4-Stroke Outboard Motor Fishing Boat Engine 123CC 4.8KW Outboard Engine with CDI Water Cooling System Short Shaft 6000Rpm

(No ratings yet)

Key item features

Powerful Performance: This 6.5HP 4-stroke outboard motor features a 123CC displacement, 4.8KW power, and a maximum speed of 6000 RPM, suitable for boats weighing 100kg or less with up to 4 people.
Advanced Cooling: Equipped with an innovative engine air cooling system and CDI water cooling, it ensures improved engine performance and durability during operation.
Maneuverable Design: Offers 360-degree steering for easy navigation, a twist-handle throttle, and an engine stop button for enhanced control and responsiveness.
Durable Construction: Built with durable cast aluminum for excellent corrosion protection and an effective outboard anticorrosion system, ensuring enhanced longevity.
Convenient Features: Includes a redesigned carrying handle and holding grip for easy transport, and a pushbutton latch on the bonnet for quick engine access.
Versatile Application: Ideal for various small watercraft, including inflatable boats, fishing boats, sailing boats, and small yachts.
Detailed Specifications: Features a short shaft of 40 cm, F-N-R gear positions, manual start, and uses #93 gasoline with a 12L standard fuel tank capacity.

Generated by AI

Specs

Horsepower
6.5 HP
Boat motor type
Outboard Boat Motors
Brand
LOYALHEARTDY
Engine displacement
123CC
Power type
Gas
Cooling system
Water Cooled

Price when purchased online

Report an issue with this seller

More seller options (1)

Starting from $683.68

About this item

Product details

Please kindly noted that this item is sold by GOJOY from Joybuy marketplace.

Product Description:

It provides all the power you need for motoring in a small craft. This engine does that as well as providing fuel efficiency second to none and a newly redesigned carrying handle and holding grip make it convenient to transport! With all of this available at a competitive price, it is no wonder this little outboard receives so much attention and praise!

Notice: Please add gear oil to the gears before use the motor and replace gear oil after the run-in period(10 hours).(if you do not know how to handle this,please contact us) .our outboard motor doesn't with oil of gear,please prepair it by yourself .Keep in mind that you must add oil on the gear beofore use !!!

Pay Attention:

About the noise: all the gasoline machines are noisy, currently we did not test the decibel, but the noise is the same as the motorcycle, so it is a normal phenomenon.

The machine itself is lightweight, it can use on boat weight of 100kg or less, load-bearing 4 people, but the speed is certainly not the same whenone person on it or 4 people on it . Customer who has high expectations on speed, please be noticed.

It can be marched with inflatable boats, rubber boats or fishing boats.

Necessary: you have to prepare a boat-motor stand or Hanging board on your boat.

About certification:

We can only provide CE certification, there is no other certification can be provided,thanks for your understanding.

Specification:

Short Shaft: 40 cm/15.75 inch
Displacement: 123CC
Gear ratio: 2.08(27:13)
Cylinder: 1
Max.speed(r/min): 5000-6000
Gear Positions: F-N-R
Packing size: 114*64*41 cm/ 44.88*25.20*16.14 inch
Ignition System: CDI
Cooling System: Water-cooling
Control System: Tiller control
Starting System: Manual start
Control System: #93 gasoline
N.W./G.W.: 26/31.2kgs (57.32/68.78 lbs)
Bore x Stroke: 59x45 mm / 2.32x1.77 inch
Recommended Propeller range: 3 -7"x9"
Recommended Lubricant: Four Stroke Lubricating oil
Mixing ratio: Pure gasoline
Trim and tilt system: Manual Tilt
Overall LxWxH: 78.3*34.3*103.9 cm/30.83*13.50*40.91 inch
Standard fueel tank capacity: 12L

Bonus Accessories:

Brochures, tubing, cotter pins

Pump impeller, start rope, start key

12 liter fuel tank, tool kit, spark plug, cylinder head pad

NOTE: Cylinder Scoring is a serious damage,which caused by improper use and will cost you a lot of money to repair the motor.

Thrust: 600-1,500 kg, with a speed of about 20-10 km/h (depending on the environment, water area and different speed of hull load)

Do not do the following will avoid cylinder Scoring:

1. start the motor on bank

2. use the motor when it stop coming out of water

Innovative Marine Engines - Uses superior engine air cooling system to improve engine performance. Vertically mounted engine design for increased power, performance and durability
4 stroke power,6.5 Horsepower - The design has 4 engine strokes, Standard equipment for heavy-duty light aluminum cast propellers, This engine does that as well as providing fuel efficiency second to none and a newly redesigned carrying handle and holding grip make it convenient to transport
360° Steering - 360 degree rotation, rotating in the opposite direction without changing speed. Twist handle throttle handle and engine stop button improve response, it can use on boat weight of 100kg or less, load-bearing 4 people
Easy to Use - Durable cast aluminum construction provides excellent corrosion protection. Excellent outboard anticorrosion system and anode for enhanced durability. The bonnet with pushbutton latch is easy to remove for immediate access to the engine
Wide Uses - Ideal choice for inflatable boats, fishing boats, sailing boats and small yachts
