Hero image 0 of Vixen Air 1/2" NPT Air Ride Suspension High Flow Normally Closed Electric Air Valve (Solenoid) 250 PSI VXF4012, 0 of 3

Vixen Air

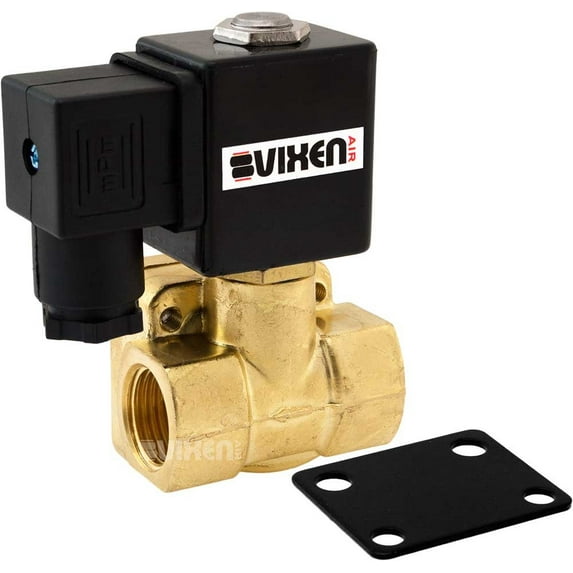

Vixen Air 1/2" NPT Air Ride Suspension High Flow Normally Closed Electric Air Valve (Solenoid) 250 PSI VXF4012

Name: Vixen Air 1/2" NPT Air Ride Suspension High Flow Normally Closed Electric Air Valve (Solenoid) 250 PSI VXF4012
Brand: Vixen Air
SKU: 254288986
Price: 49.18 USD
Availability: InStock

(No ratings yet)

Check if this fits your vehicle

Key item features

12V HEAVY DUTY SOLENOID - A heavy duty normally closed air valve that will allow the air flow trough it when it becomes electrically energized. The unique design provides high pressure control at minimal power consumption
250 PSI MAXIMUM AIR PRESSURE - Ideal for any suspension system or high pressure train horn installed on vehicle with a 12 volt power source. This highly responsive valve will open and close in seconds when actuated, meaning it will open or close the air flow almost instantaneously
LARGE AIR PORTS - Large ½" NPT inlet and outlet female air ports for a fast response. Make sure to use ½" air lines for maximum performance. Main structure is constructed of industrial grade brass offering maximum resistance against corrosion
EASY TO INSTALL - Valve is already pre-wired for a faster installation. A metal mounting bracket is included to attach the valve to your vehicle. Clear instructions are provided
PREMIUM QUALITY & BEST VALUE FOR MONEY - This valve was designed to ensure it lasts many years with daily use while increasing your system's performance to unprecedented levels. A 1-year warranty is provided

Specs

Vehicle model
VXF4012
Vehicle fitment type
Specific
Brand
Vixen Air
Features
Easy Installation
Material
Brass
Finish
Brass

Current price is $49.18

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Ships to

Arrives by Wed, May 20

Sold and shipped by HookedOnTronicsPro Seller

4.103448275862069 stars out of 5, based on 58 seller reviews(4.1)

Report an issue with this seller

Free 30-day returns

About this item

Product details

This powerful ½" NPT air valve with exceptional high flow delivers unparalleled performance for 12V vehicles. The unique design provides high pressure control at minimal power consumption. Valve supports pressures of up to 250 PSI and is constructed with high quality brass to ensure continuous use through extreme conditions. Solenoid's DIN connector is water and dust resistant, a metal mounting bracket is included, and the air flow direction is clearly marked with an arrow to provide an easy trouble-free installation. Ideal for air suspension applications. ½" NPT High Flow Electric Air Valve (Solenoid) Power Source: 12V Max Air Pressure: 250 PSI High Flow 3/8" NPT Female Inlet and Outlet Ports Brass Construction Dust and Water Protection (IP65 Rated) Ideal for Air Suspension Mounting Bracket Included Dimensions: 2-7/8" W x 4" H x 1-¾" D

12V HEAVY DUTY SOLENOID - A heavy duty normally closed air valve that will allow the air flow trough it when it becomes electrically energized. The unique design provides high pressure control at minimal power consumption
250 PSI MAXIMUM AIR PRESSURE - Ideal for any suspension system or high pressure train horn installed on vehicle with a 12 volt power source. This highly responsive valve will open and close in seconds when actuated, meaning it will open or close the air flow almost instantaneously
LARGE AIR PORTS - Large ½" NPT inlet and outlet female air ports for a fast response. Make sure to use ½" air lines for maximum performance. Main structure is constructed of industrial grade brass offering maximum resistance against corrosion
EASY TO INSTALL - Valve is already pre-wired for a faster installation. A metal mounting bracket is included to attach the valve to your vehicle. Clear instructions are provided
PREMIUM QUALITY & BEST VALUE FOR MONEY - This valve was designed to ensure it lasts many years with daily use while increasing your system's performance to unprecedented levels. A 1-year warranty is provided

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Vehicle model

VXF4012

Vehicle fitment type

Specific

Brand

Vixen Air

Automotive specialty part type

Electric Air Valve (Solenoid)

Warranty

Warranty information

Vixen Air warranties this product to be free from defects in workmanship and materials for a period of (one) 1 year following the date of purchase.

Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
