200 Pcs Solder Seal Sleeve Wire Connectors, Heat Shrink Butt Splice Connectors, Waterproof Heat Shrink Solder Wire Connectors Seal Sleeve Butt Terminals

• An easy one step connection of wires, soldered, insulated and sealed

• Polyolefin tubing in outside and hot melt adhesive in inside

• Solder and seal and with advanced waterproof function

• Polyolefin heat shrink butt connectors improved pullout strength, provides seal, strain relief, cable check, and insulation

• Transparent heat shrink sleeve allows for precise visual inspection

• Greater pull strength

• Ideal used in electronics,railway, marine, automobile, motorcycle, aerospace and other outdoor applications.

Specification:

• Operating Temperature Range:

• Operating temperature: -55°C ~ 125°C

• Minimum temperature for solder to melt: 138°C

• Minimum shrink temperature: 80°C

• Minimum for solder to fully melt temperature: 180°C

• Shrink temperature: ＞160°C

• Dielectric strength: 1kv

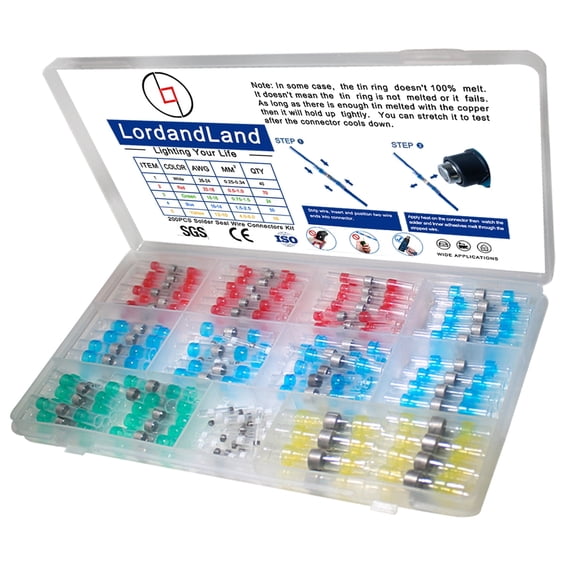

Package Included

• 40 x White Connectors: Diameter 1.7 mm, Cable cross-section 0.25-0.34 mm² (A.W.G.:26-24)

• 70 x Red Connectors: Diameter 2.7 mm, Cable cross-section 0.5-1.0 mm² (A.W.G.:22-18)

• 24 x Green Connectors: Diameter 4.5mm, Cable cross-section 0.75-1.25 mm² (A.W.G.:18-16)

• 50 x Blue Connectors: Diameter 4.5mm, Cable cross-section 1.5-2.5 mm² (A.W.G.:16-14)

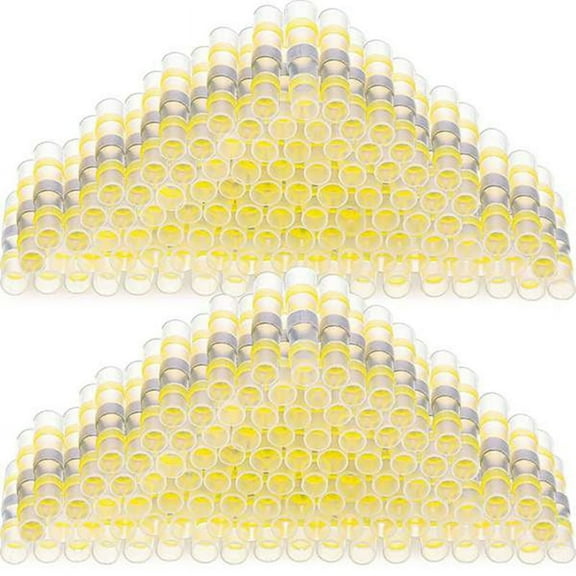

• 16 x Yellow Connectors: Diameter 6.0 mm, Cable cross-section 4.0-6.0 mm² (A.W.G.:12-10)

• 200 Pcs Solder Seal Sleeve Wire Connectors, Heat Shrink Butt Splice Connectors, Waterproof Heat Shrink Solder Wire Connectors Seal Sleeve Butt Terminals
