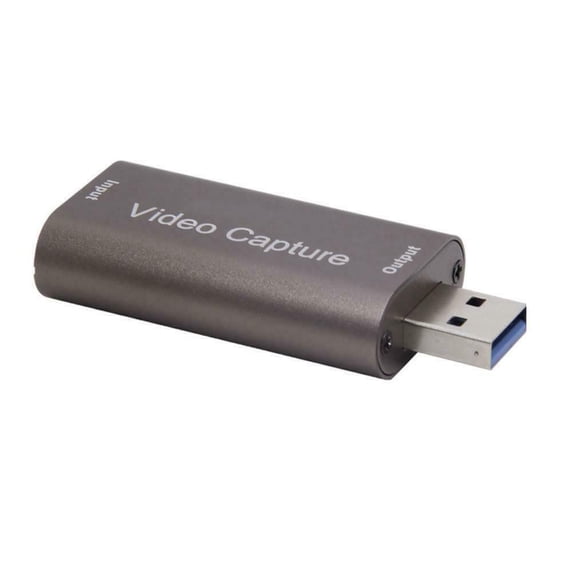

1080P 4K HDMI to USB 3.0 Audio Video Capture Card Game Recording Live Streaming

Features:
Support the maximum input resolution of 3840×2160@60Hz;
Support the maximum output resolution of 1920×1080@60Hz;
Support 8/10/12 bit color depth;
No need for external power supply, compact and easy to carry.

Specifications:
HDMI resolution: The highest input can support 3840×2160@60Hz
Video input format: 8/10/12 bit color depth
Video output mode: YUV, JPEG
Video output resolution: Maximum output resolution 1920×1080@30Hz
Support audio format: L-PCM
Input cable length: ≤15 meters, AWG26 HDMI standard cable
Maximum working current: 0.4A/5VDC
Operating temperature range: (-10 to +55℃)
Size: 64x28x13 (mm)

Connection operation:
1: Connect the UHD signal source and the HDMI input port of the USB capture card through 1 HDMI cable
2: Insert the USB male connector of the USB capture card into the USB port of the computer
3: Acquisition operation steps (OBS): open the software → add a new source → select "video capture device" → set the screen size →
Select ‘Studio Mode’ (dual windows) → click on ‘Start Recording’, see the example below for details
1.Add a new source, select ‘video capture device’
2. Set the screen size
3. Select ‘Studio Mode’ (dual windows) and the above settings are completed.

Note: Computer hardware configuration requirements
CPU: For PC i5-3400 or above; For NB i7-3537U 2.0GHZ or above
Graphics card: PC GT630 or above; NC or above
Storage: 4G RAM

Package include:
1* Capture card
