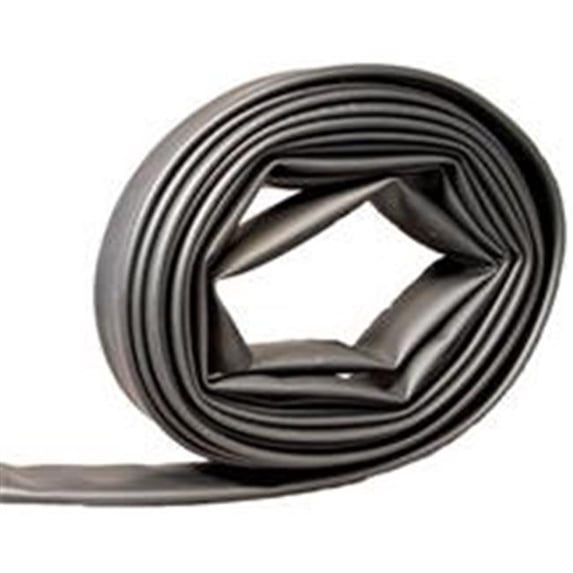

Morris Products 68196 Heavy Wall Heat Shrink Tubing 2 5 Ft. 3.5 4 In. to 1.18 In. 800-1250Mcm

Heavy Wall Heat Shrink Tubing 25' 3.54"-1.18'' 800-1250MCM - This Heat Shrink Tubing is rated for High Voltage.

• High voltage heat shrink tubing provides maximum reliability for insulating and protection of cable joints and terminations.
• Withstands severe mechanical requirements of U.R.D., submersible and direct burial installations.
• High impact, abrasion, corrosion and chemical resistance.
• Rated for 600-2500V, 90°C continuous use.
• 4’ Lengths have Thermoplastic Adhesive Liner provides complete environmental protection and insulation.
• Heat shrink tubing meets: UL 486D, CSA C22.2 No. 198.2, ANSI C119.1, Western Underground Guide Numbers 2.4, 2.5, ICEA and NEMA insulation thickness requirements.
• Continuous operating temperature: -67°F to 230°F (-55°C to 110°C).
• Shrink temperature: 248°F (120°C).
• Heavy Wall holds better mechanically &has better underground protection than medium wall
• Black color.

• Cable Range: 800-1250MCM
• Length: 25 in.
• Diameter Before Shrinking: 3.54 in.
• Diameter After Shrinking: 1.18 in.
• Wall Thickness: .16 in.
• Item weight - 7.40 lbs.
