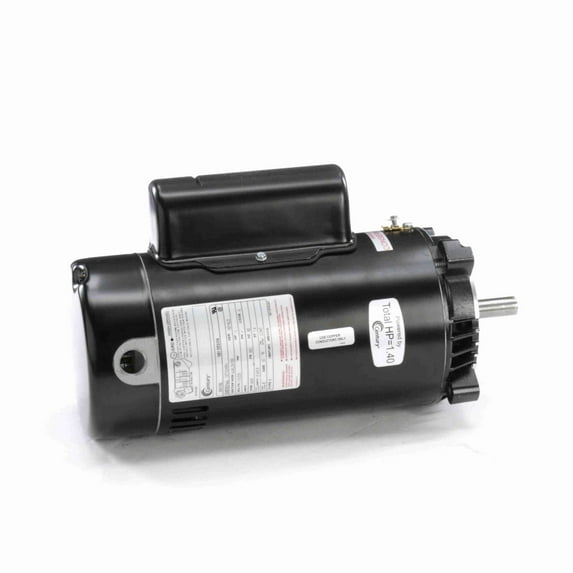

The Pool Supply Shop 1 HP Keyed Shaft Full-Rated Pool and Spa Pump Motor

For an easy and smooth running, buy this 1 HP motor with a keyed shaft. The keyed shaft enables efficient running without hindrance. The 1.40 service force offers the apt fudge factor that gives extra horsepower. Product Features: Includes sealed ball bearings and sealed witch design. Capacitor start-capacitor run. Withstand ambient temperature up to 50°C. 303 stainless steel shaft for corrosion protection. Additional Features: Output HP: 1 Hp. Output KW: 0.75 kW. Frequency: 60 Hz. Voltage: 230/115 V. Current: 6.8/13.6 A. Speed: 3450 rpm. Service factor: 1.4. Phase: 1. Duty: continuous. Insulation class: B. Frame: 56C. Enclosure: open drip proof. Thermal protection: automatic. Electrical type: capacitor start capacitor run. Poles: 2. Rotation: counterclockwise pump end. Mounting: C face. Motor orientation: horizontal. Drive end bearing: ball. Shaft type: keyed. Dimensions: 11"H x 9.5"W x 17.63"L. Shaft diameter: 0.625". Shaft extension: 2.06". Frame length: 8.75". Material(s): stainless steel. Frame: rolled steel
