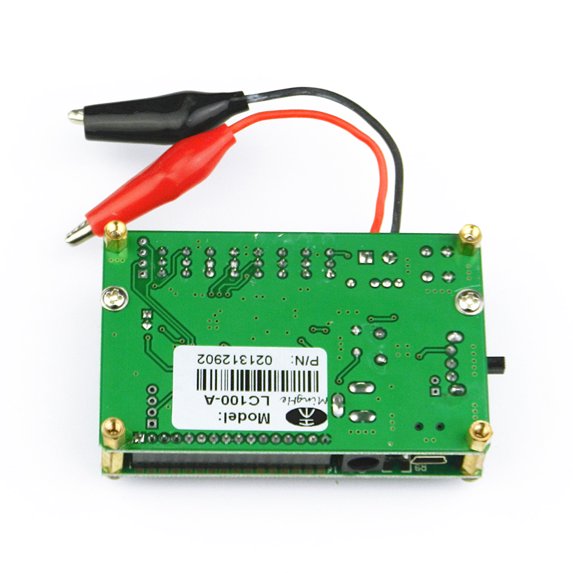

Thinsont Bonrich 1 pcs LC100-A Digital LCD High Precision Inductance Capacitance L/C Meter

Description:

It can measure capacitance(1pF-100mF) and inductance(1uH-100H).

Adds precise measurement of high-speed micro-controller, suitable for microwave and switching mode power supply transformer, etc.

It has an advantage over small value testing with precision and minimum resolution.

Flexible online can always maintain measurement accuracy.

The calibrated parameters are completely stored in inside of micro-controller, wouldn't lost when power-off.

Specifications:

Color: Green.

Capacitance Measurement(C): Accuracy: 1pF~1uF 1%; 1uF~10uF 5%.

Resolution: 0.01pF.

Inductance Measurement(L): Accuracy: 1uH~100mH 1%.

Resolution: 0.001uH.

Large Inductance Measurement(Hi.L): Accuracy: 100mH~1H 1%; 1H~100H 5%.

Resolution: 0.001mH.

Large Capacitance Measurement(Hi.C): Accuracy: 1uF~100mF 5%.

Resolution: 0.01uF.

Test Frequency: L/C: 500KHz; Hi.L: 500Hz~50KHz.

Measurement Mode of Inductance/Capacitance/Large Inductance: LC Resonance.

Measurement Mode of Large Capacitance: Charging and Discharging.

Display: 1602 LCD.

Effective Display Digits: 4.

Power Supply: Mini USB Interface and Dia. 5.5 DC Plug.

Power Voltage: 5V.

Material: metal.

Size: 80*50*30mm.

Package include:

1 * High Precision L/C Meter.

1 * USB Cable.
