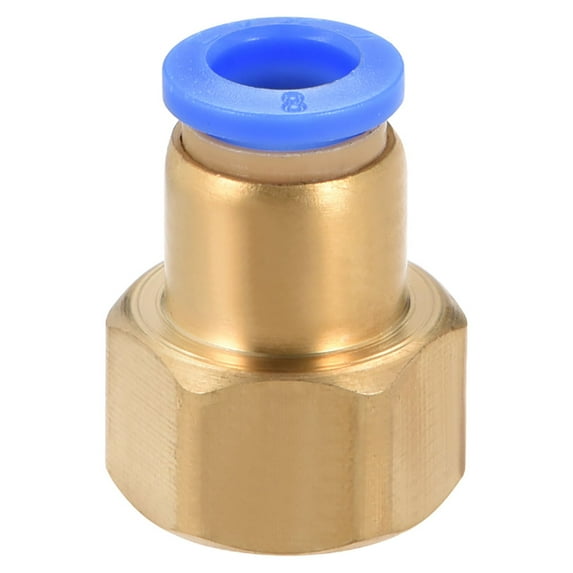

Push to Connect Tube Fitting,Adapter,8mm Tube OD x G3/8" Female Straight Pneumatic Connecter Pipe Fitting

Product Features:

Product Name : push to connect fittings

Model : PCF8-03

Net Weight : 20g

Color : Gold Tone,Blue

Material : Plastic,Brass

Operating Pressure : 0-1MPa

Operating temperature：0 - 60 Degree Celsius;

Female Thread Type : G Type

Type: Female Straight Thread Connector

Thread Size : G3/8"

Tube Size (OD): 0.31" / 8mm

Dimension : 27mm x19mm / 1.06-inch x 0.75-inch (L x W）

Package Content:

1pcs x Quick Fittings

Description:

1.The quick fitting is designed for Polyurethane or Nylon tubing. Even after installation, the direction of the tube can be changed freely.

2.Push-to-connect tube connection on one end and Female G threads on the other end.

3.A good release cap can withstand greater and stronger pressure without tripping.

4.Have abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.

5.Elliptical release ring help to connect tube easily by manual, no special tools required.

Mounted:

1.Cut the pipe flat, no slope

2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.

3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected.

4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.
