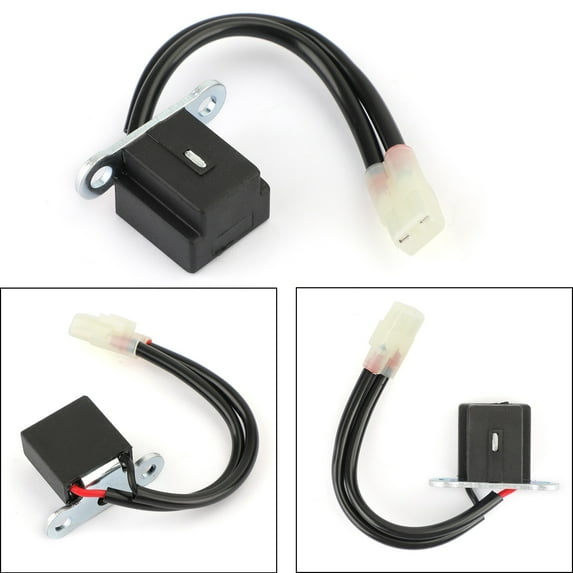

Motor Genic IGNITION TIMING COIL SENSOR Fit for SUZUKI DT150 DT200 DT225 '98-'03 32160-92E20

Pick-up Pulsar / Pulsing Coil Fit For Suzuki DT 150 200 225 HP Outboards 32160-92E20

Features:
Brand new pickup/pulsar coil for you to repair your stator.
Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
Often unavailable from the OEM manufacturer.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Pick up pulsar coil

Dimensions:
Height: 18.5mm
Length: 26mm
Width: 23mm
Bracket center to center: 29.2mm
Wires length: Approx.120mm

Other Specifications:
Number of wires: 2
Number of plugs: 1

PART NUMBER(S):
32160-92E20

Fitments:
Fit for Suzuki DT150 1998-2003
Fit for Suzuki DT200 1998-2000
Fit for Suzuki DT225 2001-2003

Package Included:
1x Pick up pulsar coil

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

NOTE:
Not following these instructions may result in damaging the part or other components on your vehicle.
-By using a small soldering iron weld the wires to the ones on your OEM wiring harness.
-Insulate your solders with heat shrink.
-Before attempting to start your vehicle, adjusting the air gap is necessary for certain models.
-Rotate the fly wheel by hand so the raised node is lined up with the pick up /pulsar coil and adjust as close as possible, but no less than 0.010 in.
-If no spark or erratic spark, switch the wires at the plug.
