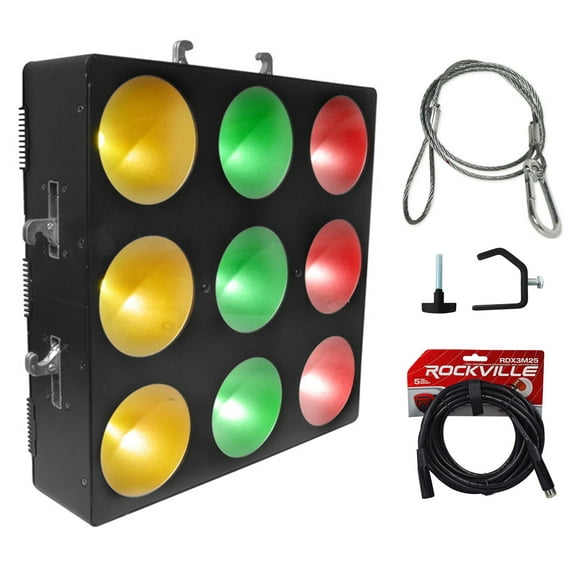

Chauvet DJ CORE 3x3 COB LED Pixel Mapping Wash Light+Clamp+Harness+DMX Cable

Package Includes:

(1) Chauvet DJ CORE 3x3 COB LED Pixel Mapping+Linear Wash Panel Light
(1) Rockville RDX3M25 25 Foot 3 Pin DMX Lighting Cable Female 2 Male
(1) Chauvet CH-05 31" Inch Safety Clamp Lighting Cable Wire
(1) Rockville LC70 Heavy Duty C Clamp

Description of CORE 3x3:

Chauvet Core™ 3x3 combines a pixel-mapping effect and a powerful LED wash.Powered by nine RGB LEDs with chip-on-board (COB) technology, it utilizes aunique reflector cup to produce large pixels of light and create intriguingsweeping and chasing effects. You can easily combine multiple units usingbuilt-in coffin locks to construct an impressive array capable of large scaleanimations and chases.

Features:

Chauvet Core 3x3 LED Chip on Board Washlight Panel
Compact, LED panel designed for use as a pixel mapping effect, blinder or washlight
Easily trigger built-in automatic and sound activated programs for a stunningshow in seconds
Produce a full spectrum of light with excellent color mixing using COBtechnology
Quickly and securely connect multiple fixtures together with built-in coffinlocks
Create animations and video effects with individual LED control
Withstand the harshness of traveling from gig to gig with a robust housing
Generate complex looks with ease using ShowXpress™ Pixels
Achieve flicker-free video operation with high-frequency LED dimming
Save time running cables and extension cords by power linking multiple units
Silent operation due to built-in fan control
Sound-activated programs dance to the beat of the music
Generate a synchronized show in master/slave mode with easy access to built-inautomated programs

Details:

DMX Channels: 3, 5, 9, 27, or 31
DMX Connectors: 3-pin
Light Source: 9 (tri-color) 9W (500mA x 3) LEDs 50,000hrs
Strobe Rate: 0 - 20Hz
Beam Angle: 47°
Field Angle: 73°
Illuminance: 1,025 lux @ 2m
Power Linking: 3 units @ 120V; 7 units @ 230V
Input Voltage: Auto-ranging 100 - 240VAC 50/60Hz
Power and Current: 226W, 1.9A @ 120V 60Hz
Power and Current: 226W, 0.9A @ 230V 50Hz
Weight: 13.6lbs (6.2kg)
Size: 6.2 x 13.6 x 13.6in (156 x 344 x 344mm)
Approvals: CE
Click Here To View The User Manual (Link Opens In New Window)

Description of RDX3M25:
Rockville High Performance Cables are designed to provide efficient signaltransfer for every application. Our Nickel-Plated, OFC (Oxygen-free copper)conductors assure that you have enhanced signal clarity with every use. Shieldedfor Superior EMI and RFI rejection, Rockville High Performance Cables are anideal choice for all your lighting connection needs.

Features:

Rockville RDX3M25 Black Nickel Plated 3-Pin Male-Female DMX Cable
OFC Conductors for Enhanced Signal Clarity
XLR Connectors with Internal Strain Relief for Rugged Reliability
Hi-density OFC Braided Shield for Superior EMI and RFI Rejection
Length: 25 Ft

Features of CH-05:

Authentic Chauvet Safety Cable
holds up to 700 pounds
31 inches long
avoids people from getting injured from lights falling down

Features of LC70:

Rockville LC70 Heavy Duty C Clamp - Mount Light Up to 70 LBS, Adjustable Knob
Load capacity: 70 lbs
Fits: 1˝to 2˝ truss
Weight: 0.9 lbs
Dimensions: 5.4˝ x 3.8˝ x 1.5˝ (137mm x 97mm x 38mm)
