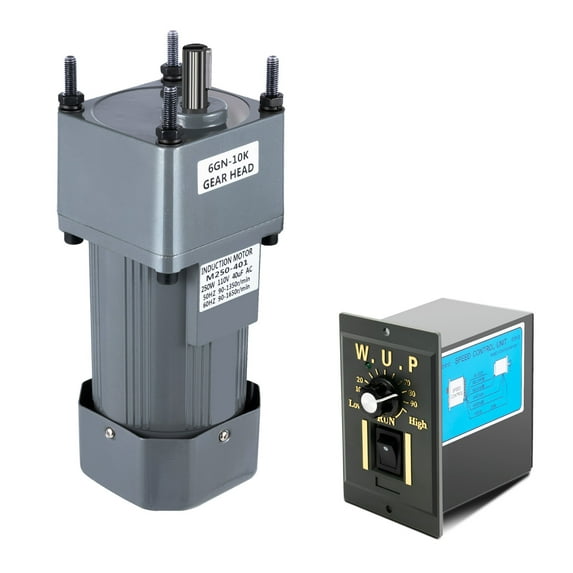

AC 110V Electric Gear Motor & Variable Speed Reduction Controller 1:10 135 RPM

(No ratings yet)

Key item features

High Efficiency: The variable-speed gear motor boasts a robust power of 250W, a reduction ratio of 10K, and a rotating speed of 135RPM, which provide you with strong power and meet your different requirements.

Durable and Sturdy: It adopts pure copper coils and an alloy shell, with excellent heat resistance and heat dissipation, allowing you to use it for a long time. The die-casting process and the heat treatment process can ensure quality and provide a longer service life.

Efficient Cooling System: The cooling holes on the bottom of the motor and the ventilated fan heat sink are designed to keep it cool and provide high reliability and durability.

Dual Rotation Design: It supports forward and reverse rotation that can be achieved by changing the position of the speed controller wiring, so you can adjust the rotational direction according to the specific situation to meet your various needs.

Stable Operation: All alloy gears with hob-shaving process, ball bearings, and pure copper coils can reduce friction and temperature during use, ensuring stable operation, increasing speed, and reducing overheating and load resistance.

Closed Design: The closed design effectively prevents dust, water, oil, etc. from entering the machine, while minimizing the need for daily maintenance as much as possible.

Low Noise: The noise emitted by the pure copper motor during operation is only about 50 decibels, which does not easy to affect you or others.

Protective Packaging: This product comes in a custom sponge that resists common compression and falls to prevent product damage in transit.

Specs

Horsepower
250 HP
Electric motor type
AC Motor
Electrical phase
Single Phase
Volts
110 V
Maximum motor speed
135 rpm
Watts
250 Watts

Current price is $108.80

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Ships to

Arrives by Fri, May 29

Sold and shipped by NSHIZWAL

3.6714285714285713 stars out of 5, based on 70 seller reviews(3.7)

Report an issue with this seller

Free 30-day returns

About this item

Product details

Description

Our variable-speed gear motor adopts a single-phase motor. It has a built-in precision gear and pure copper coil, which make it more stable and reliable. Meanwhile, the power of 250W and the speed of 135RPM can provide strong power to save a lot of energy when using it. It is suitable for conveyor belt, mixer, rotary table, and other equipment.

Details

Clear Wires: For different wires, they have different colors, thus easily distinguishing and connecting them without confusion.

Speed Controller: By rotating the controller knob you can change the motor rotation speed to suit different usage scenarios.

Screw Holes: The gearbox is provided with screw holes for fixing it to the motor for stable operation.

Application

This product is widely utilized in various industries such as packaging, printing, textile, dyeing, chemical, food, medical, pharmaceutical, and construction machinery. It is also suitable for instrumentation, transmission, automatic warehouse, parking access control systems, and other equipment.

Specifications

Color: Grey

Material: Copper, Alloy

Surface Treatment: Die-casting Process, Heat Treatment Process, Hob-shaving Process, Spray Paint

Voltage: 110V, 60Hz

Horsepower: 250W

Type of Motor: Single-phase

Special Features: Forward and Reverse Rotation

Reduction Ratio: 10K

Rotational Speed: 135RPM

Rated Torque: 16N-m

Operating Noise: About 50dB

Screws Hole Distance: 9cm/3.54inch

Screw Hole Diameter: 9mm/0.35inch

Crankshaft Diameter: 1.5cm/0.59inch

Crankshaft Length: 3.5cm/1.37inch

Gross Weight: 8.15kg/17.96lbs

Net Weight: 7.05kg/15.54lbs

Gear Motor Size: 10*10*29cm/3.9*3.9*11.4inch

Speed Controller Size: 6*10*10cm/2.3*3.9*3.9inch

Package Size: 32.5*29*20cm/12.7*11.4*7.8inch

Package Included

1*Gear Motor

1*Speed Controller

1*English Manual

Notes

1. Please check motor size, and specs before purchasing.

2. Please note it is normal for the electric machine to heat up slightly during operation.

3. Please connect each wire correctly to ensure that the machine can operate normally.

4. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.

Efficient Cooling System: The cooling holes on the bottom of the motor and the ventilated fan heat sink are designed to keep it cool and provide high reliability and durability.

Closed Design: The closed design effectively prevents dust, water, oil, etc. from entering the machine, while minimizing the need for daily maintenance as much as possible.

Low Noise: The noise emitted by the pure copper motor during operation is only about 50 decibels, which does not easy to affect you or others.

Protective Packaging: This product comes in a custom sponge that resists common compression and falls to prevent product damage in transit.
